6SL3210-1KE23-2UP1

1 / 1

Beschreibung

AktivRoHS-konform

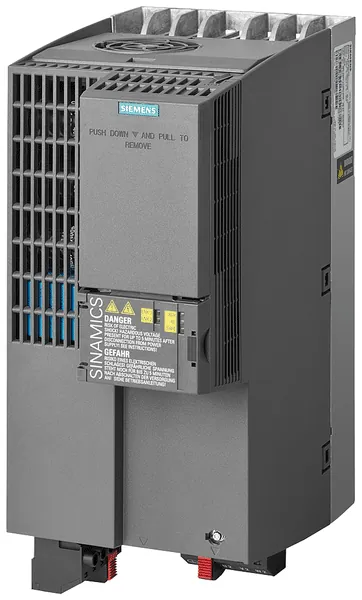

SINAMICS g120c rated power 15,0KW with 150% overload for 3 sec 3AC380-480v +10/-20% 47-63HZ unfiltered i/o-interface 6di, 2do,1ai,1ao safe torque off integrated fieldbus PROFIBUS-dp protection IP20/ ul open type size fsc 295x140x203(hxwxd) external 24v

Country of Origin: GB
Part Number: 6SL3210-1KE23-2UP1
Tariff Code: 85044095
EAN: 4042948663516
UPC: 887621052515

ETIM

Group Code : EG000017

Group Description : Low-voltage Industrial Components

Class Description : Frequency converter =< 1 kV

Class Code : EC001857

Version : 7

€1,161.60

net

€1,320.00

Kostenloser Versand!

1

Zahlungsmethoden:

Bestes Angebot von:: Vertrauenswürdiger Automa.Net Lieferant
Verfügbarkeit:: 1 Stk.
Auf Lager
Aktualisiert am: 09-11-2024
Garantie:: 24 Monate
Geschätzte Lieferung:: 11 November zu Vereinigtes Königreich
Zustand:: Neu versiegelt ab Werk

Neu versiegelt ab Werk - Ein brandneuer, unbenutzter, ungeöffneter, unbeschädigter Artikel in seiner original vom Hersteller versiegelten Verpackung.

Versandinformationen

Sicherer Zahlungsprozess

Rückgabe- und Erstattungsrichtlinien

Versandrichtlinien

Garantiebedingungen

Specifications

Country of Origin: GB
Depth: 203 mm
Width: 140 mm
Height: 295 mm
Mains voltage: 380 V
With PC connection: true
Max. output voltage: 480 V
Number of phases input: 3
Number of phases output: 3
Number of digital inputs: 6
Max. output frequency: 550 Hz
Number of analogue inputs: 1
Number of digital outputs: 2
Number of analogue outputs: 1
Number of HW-interfaces USB: 1
Type of converter: U converter
Degree of protection (IP): IP20
Nominal output current I2N: 32 A
Number of HW-interfaces other: 6
Number of interfaces PROFINET: 0
Number of HW-interfaces RS-232: 1
Number of HW-interfaces RS-422: 0
Number of HW-interfaces RS-485: 0
Number of HW-interfaces parallel: 0
Integrated breaking resistance: true
Number of HW-interfaces serial TTY: 1
Supporting protocol for PROFIBUS: true
Number of HW-interfaces industrial Ethernet: 0
Relative symmetric net frequency tolerance: 5 %
Relative symmetric net voltage tolerance: -20 %
Supporting protocol for other bus systems: true
Max. output at linear load at rated output voltage: 11 kW
Max. output at quadratic load at rated output voltage: 15 kW
Application in domestic- and commercial area permitted: true
