ABB 1SDA073299R1

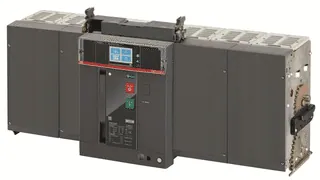

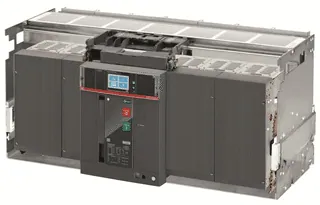

The E6.2X 6300 Ekip Hi-Touch LSIG is a four-pole air circuit breaker, specifically designed for use in AC environments. This model has a rated current of 6300 A and a rated operational voltage of 690 V AC. The device features a solid-state release mechanism and includes four auxiliary contacts, enabling it to function effectively in various operational states, including open and closed positions.

With a power loss of 1550 W, the circuit breaker is built to handle significant electrical and mechanical demands, boasting an electrical durability rated for 2000 cycles at voltages up to 690 V. Its mechanical durability extends to 12000 cycles. The rated service short-circuit breaking capacity reaches up to 200 kA for various operational voltages, ensuring robust protection for transformers, generators, and installations.

Constructed according to IEC standards, this circuit breaker also features a rated impulse withstand voltage of 12 kV and a rated insulation voltage of 1000 V AC. The neutral pole current is set at 50% of the rated uninterrupted current. The dimensions of this equipment measure 929 mm in width, 425 mm in height, and 383 mm in depth, with a total weight of 134 kg. It is important to note that this product adheres to environmental standards, contributing to sustainability with a recyclability rate of 76.7% as per EN45555.
