ABB 2CDS254001R0041

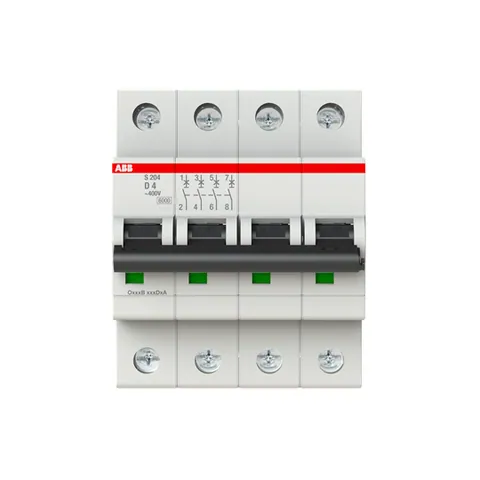

The S204-D4 miniature circuit breaker is designed for current limiting applications, featuring dual tripping mechanisms: a delayed thermal mechanism for overload protection and an electromechanical mechanism for short-circuit protection. It is suitable for various configurations including 4-pole setups and complies with standards such as IEC/EN 60898-1 and UL 1077, making it applicable for residential, commercial, and industrial environments.

With a rated operational voltage of up to 440 V AC and a rated short-circuit capacity of 6 kA, this circuit breaker is engineered to handle demanding electrical conditions. Its compact design allows for mounting on DIN rail TH35-15 or TH35-7.5, facilitating versatile installation options. Furthermore, it offers an IP20 degree of protection and operates effectively in ambient temperatures ranging from -25 °C to +55 °C, with a storage temperature range of -40 °C to +70 °C.

To enhance space efficiency, the S204-D4 can accommodate a bottom-fitting auxiliary contact. This model also demonstrates a significant environmental commitment, achieving an 80.7% recyclability rate as per EN45555 standards. The design and construction are aligned with sustainability principles, contributing to the circular economy through take-back services for recycling.

For further technical details, the product is classified under the designation code 2CDS254001R0041.
