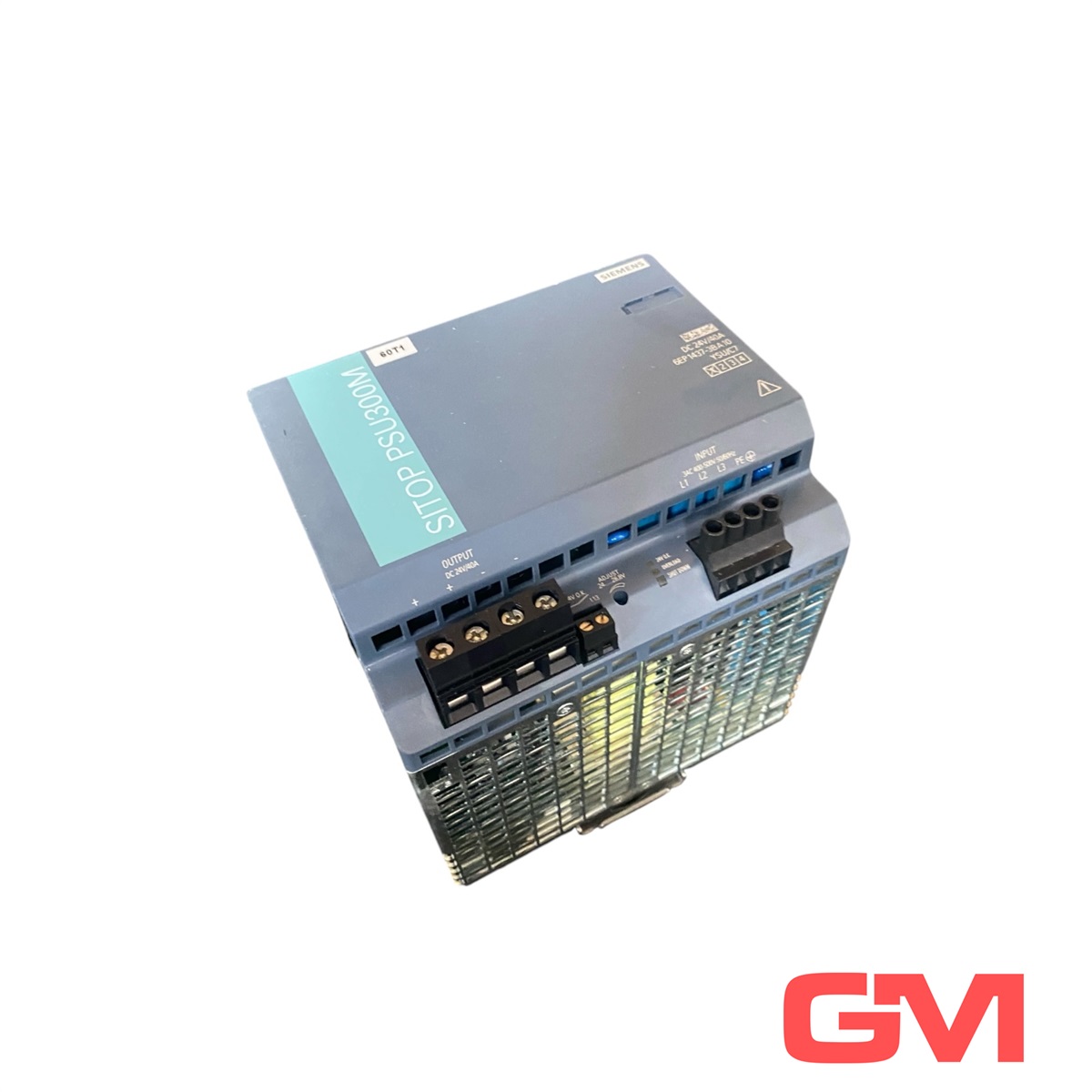

6EP1437-3BA10

Specifications

Adjustable output voltage Full-scale value [V]

28.8

Adjustable output voltage Full-scale value Note

max. 960 W

Adjustable output voltage initial value [V]

24

Ambient temperature during operation Full-scale value [°C]

70

Ambient temperature during operation initial value [°C]

-25

Ambient temperature during storage Full-scale value [°C]

85

Ambient temperature during storage initial value [°C]

-40

Ambient temperature during transport Full-scale value [°C]

85

Ambient temperature during transport initial value [°C]

-40

Behavior of the output voltage when switching on

No overshoot of Vout (soft start)

Buffering time at rated output current in the event of power failure minimum [ms]

15

Certificate of suitability as approval for USA

cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259

Certificate of suitability ATEX

yes

Certificate of suitability cCSAus, Class 1, Division 2

yes

Certificate of suitability CE marking

yes

Certificate of suitability CSA-approval

yes

Certificate of suitability FM registration

no

Certificate of suitability IECEx

yes

Certificate of suitability NEC Class 2

no

Certificate of suitability relating to ATEX

IECEx Ex nA nC IIC T4 Gc; ATEX (EX) II 3G Ex nA nC IIC T4 Gc; cCSAus (CSA C22.2 No. 213, ANSI/ISA-12.12.01) Class I, Div. 2, Group ABCD, T4

Certificate of suitability Shipbuilding approval

yes

Certificate of suitability UL approval

yes

Constant overload current on short-circuiting during the start-up typical [A]

44

Current limitation of inrush current at 25 °C maximum [A]

56

Depth of the enclosure [mm]

150

Design of input wide range input

yes

Design of short-circuit protection

Alternatively, constant current characteristic approx. 44 A or latching shutdown

Design of the overvoltage protection

< 35 V

Display version for normal operation

Green LED for 24 V OK

Display version for overload and short circuit

LED yellow for "overload", LED red for "latching shutdown"

Documentation selection list

yes

Duration of overloading capability for excess current at short-circuit during operation [ms]

25

Efficiency in percent [%]

92

Electrical accessories

Buffer module

Enduring short circuit current RMS value typical [A]

44

Environmental category acc. to IEC 60721

Climate class 3K3, no condensation

Equipment marking acc. to DIN EN 81346-2

T

Fuse protection type In the feeder

Required: 3-pole connected miniature circuit breaker 10 ... 16 A characteristic C or circuit breaker 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489)

Galvanic isolation

Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178

Galvanic isolation between entrance and outlet

yes

Height of the enclosure [mm]

125

I2t value maximum [A2.s]

2.24

Input current at rated input voltage 400 V Rated value [A]

2.6

Input current at rated input voltage 500 V Rated value [A]

2.1

Installation width [mm]

150

Leakage current maximum [mA]

3.5

Line frequency 1 Rated value [Hz]

50

Line frequency 2 Rated value [Hz]

60

Line frequency Full-scale value [Hz]

63

Line frequency initial value [Hz]

47

Marine classification association American Bureau of Shipping Europe Ltd. (ABS)

yes

Marine classification association Germanische Lloyd (GL)

yes

Mechanical accessories

Device identification label 20 mm × 7 mm, pale turquoise 3RT1900-1SB20

Mounting height [mm]

225

Mounting type

Snaps onto DIN rail EN 60715 35x15

Mounting type S7 rail mounting

no

Mounting type Standard rail mounting

yes

Mounting type wall mounting

no

MTBF at 40 °C [h]

885739

Net weight [kg]

3.4

Number of parallel-switched resources for increasing the power

2

Operating condition of the mains buffering

at Vin = 400 V

Operating resource protection class

Class I

Other information

Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

Output current Rated range Full-scale value [A]

40

Output current Rated range Full-scale value Note

=+60 ... +70 °C: Derating 3.75%/K

Output current Rated range initial value [A]

0

Output current Rated value [A]

40

Output voltage at DC Rated value [V]

24

Output voltage at output 1 at DC Full-scale value [V]

24

Output voltage at output 1 at DC initial value [V]

24

Overcurrent overload capability in normal operation

overload capability 150 % Iout rated up to 5 s/min

Phase number

3

Power loss [W] at rated output current at rated output current typical [W]

83

Product brand name

SITOP PSU8200

Product designation

Power supply SITOP modular

Product feature bridging of equipments

yes

Product feature bridging of equipments Note

switchable characteristic

Product feature device in control circuit

yes

Product feature of the enclosure housing for side-by-side mounting

yes

Product function Output voltage adjustable

yes

Product function Output voltage controlled

yes

Product function Output voltage stabilized

yes

Property of the output Short-circuit proof

yes

Protection class IP

IP20

Relative control precision of the output voltage load step of resistive load 50/100/50 % typical [%]

3

Relative control precision of the output voltage On slow fluctuation of input voltage [%]

0.1

Relative control precision of the output voltage On slow fluctuation of ohm loading [%]

0.2

Relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical [%]

1

Relative overall tolerance of the voltage [%]

3

Required spacing bottom [mm]

50

Required spacing left [mm]

0

Required spacing right [mm]

0

Required spacing top [mm]

50

Residual ripple maximum [mV]

100

Response delay maximum [s]

2.5

Response value current limitation typical [A]

44

Setting time maximum [ms]

10

Shipbuilding approval

GL, ABS

Short-term overload current at short-circuit during operation typical [A]

120

Standard for emitted interference

EN 55022 Class B

Standard for interference immunity

EN 61000-6-2

Standard for mains harmonics limitation

EN 61000-3-2

Supplied active power typical [W]

960

Supply voltage at 50 Hz rated value [V]

400

Supply voltage at 60 Hz rated value [V]

500

Supply voltage at AC Full-scale value [V]

575

Supply voltage at AC initial value [V]

320

Supply voltage at AC maximum rated value [V]

500

Supply voltage at AC minimum rated value [V]

400

Type of certification CB-certificate

yes

Type of current supply

24 V/40 A

Type of electrical connection

screw-type terminals

Type of electrical connection at input

L1, L2, L3, PE: 1 screw terminal each for 0.2 ... 4 mm² single-core/finely stranded

Type of electrical connection at output

=+, -: 2 screw terminals each for 0.33 ... 10 mm²

Type of electrical connection for auxiliary contacts

13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm²

Type of output voltage setting

via potentiometer

Type of signal at output

Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK"

Type of the power supply network

3-phase AC

Voltage curve at input

AC

Voltage curve at output

Controlled, isolated DC voltage

Voltage increase time of the output voltage maximum [ms]

500

Voltage peak maximum [mV]

200

Width of the enclosure [mm]

150

Additional Product Information

EAN

4025515152538

UPC

40892549577

Commodity Code

85044090

LKZ_FDB/ CatalogID

KT10-PE

Product Group

4213

Country of origin

Romania

RoHS Compliance

Since: 03/10/2009

Returnable

Yes

Obligation Category for taking back electrical and electronic equipment after use

No obligation to take back electrical and electronic equipment after use

Delivery Information

Export Control Regulations

AL : N / ECCN : N

Delivery Time

1 Day/Days

Net Weight (lb)

7,496 lb

Product Dimensions (W x L x H)

Not available

Packaging Dimension

7,283 x 7,283 x 5,906

Package size unit of measure

in

Quantity Unit

1 Piece

Packaging Quantity

1
