Harting
09140082633

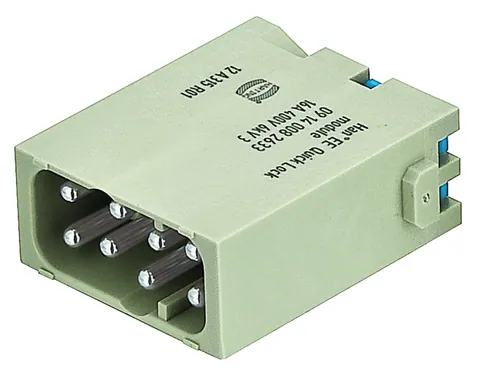

Han® EE module, Han-Quick Lock® termination, Male, Contacts: 8, Conductor cross-section: 0.5 ... 2.5 mm², Rated current: 16 A
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
€14.28
1
Metodi di pagamento:
Un totale di 552 Parts In-Stock da 15 Distributors
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
Invia una richiesta di prezzo
Additional Information
- Part Number
- 09140082633
Technical characteristics
- Conductor cross-section
- 0.5 ... 2.5 mm²
- Rated current
- 16 A
- Rated voltage
- 400 V
- Rated impulse voltage
- 6 kV
- Pollution degree
- 3
- Rated voltage acc. to UL
- 600 V
- Insulation resistance
- >10
- Contact resistance
- ≤ 1 mΩ
- Stripping length
- 10 mm
- Limiting temperature
- -40 ... +125 °C
- Mating cycles
- ≥ 500
Version
- Termination method
- Han-Quick Lock
- Gender
- Male
- Number of contacts
- 8
- Details
- Blue slide
Commercial data
- Packaging size
- 2
- Net weight
- 22.775 g
- Country of origin
- Romania
- European customs tariff number
- 85366990
- ECl@ss
- 27440217 Module for industrial connectors (power/signals)
Specifications and approvals
- Specifications
- EN 60664-1 || IEC 61984
- Approvals
- DNV GL
- UL / CSA
- UL 1977 ECBT2.E235076 || UL 2237 PVVA2.E318390 || CSA-C22.2 No. 182.3 PVVA8.E318390
Material properties
- Material (insert)
- Polycarbonate (PC)
- Colour (insert)
- RAL 7032 (pebble grey)
- Material (contacts)
- Copper alloy
- Surface (contacts)
- Silver plated
- Material flammability class acc. to UL 94
- V-0
- RoHS
- compliant with exemption
- ELV status
- compliant with exemption
- China RoHS
- 50
- REACH Annex XVII substances
- No
- REACH ANNEX XIV substances
- No
- REACH SVHC substances
- Lead
Identification
- Category
- Modules
- Series
- Han-Modular
- Type of module
- Han
