Harting 09661526613

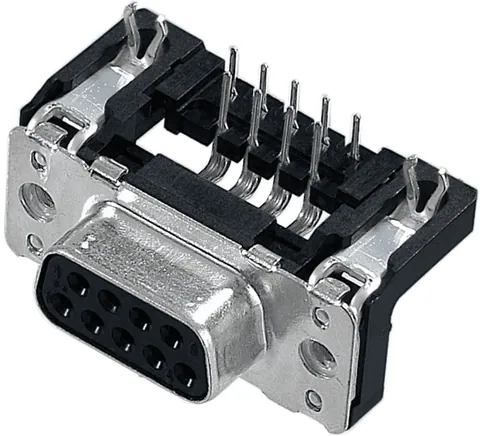

This connector features a wave soldering termination method and is designed to accommodate a rated current of 6.5 A. With a female gender and a size classification of D-Sub 1, it is suitable for various applications. The connector comprises a thermoplastic resin material that is glass-fibre filled (PBTP) and plated steel, ensuring durability and performance.

It includes 9 contacts, a grounding pin, and employs a fixing flange with a fitted screw lock (4-40 UNC) for secure connections. The distance between rows is 2.54 mm, with a clearance distance of ≥ 1 mm and creepage distance of ≥ 1 mm. The insulation resistance exceeds 10, while the contact resistance is maintained at ≤ 10 mΩ. This component operates effectively within a limiting temperature range of -55 to +125 °C and has a test voltage of 1 kV.

According to CECC 75301-802, the performance level is rated as 2, and the PCB fixing is facilitated by board locks. This connector adheres to the DIN 41652 specification and is UL/CSA approved under UL 1977 ECBT2.E102079, ensuring compliance with industry standards. The net weight of the connector is 8.42 g, and it is packaged in sizes of 100.
