Harting 21033814827

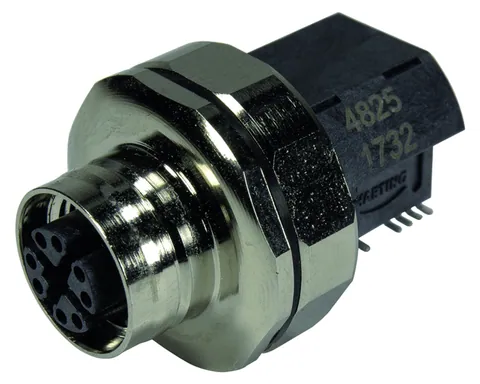

The PCB adapter connector is engineered for Power over Ethernet (PoE+) applications, incorporating an integrated transformer in an angled design, suitable for front mounting. It supports a rated current of 0.8 A and a rated voltage of 57 V, ensuring robust performance in various environments. The connector features 8 contacts made from brass with a gold-plated surface, enhancing conductivity while maintaining low contact resistance of ≤ 10 mΩ.

Designed for reflow soldering termination (SMT), this female connector employs a screw locking mechanism and is shielded for optimal signal integrity. Its coding is identified as X-coding, ensuring secure connections. With a degree of protection rated to IP65/IP67 when mated, it operates efficiently across a temperature range of -40 to +85 °C, withstanding up to +245 °C during soldering processes.

The connector is compliant with IEC 61076-2-109 standards, and its materials include liquid crystal polymer (LCP) for the insert and brass for the contacts. It is RoHS compliant with exemptions and has been designed for a minimum of 100 mating cycles, making it a reliable choice for industrial applications. Notably, it facilitates data transmission at a rate of 10 Gbit/s, adhering to Category 6 transmission characteristics.
