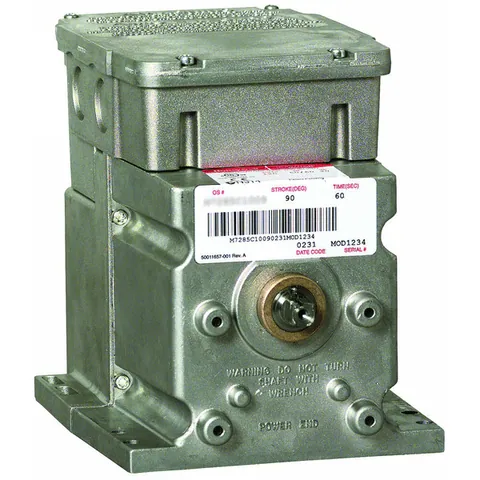

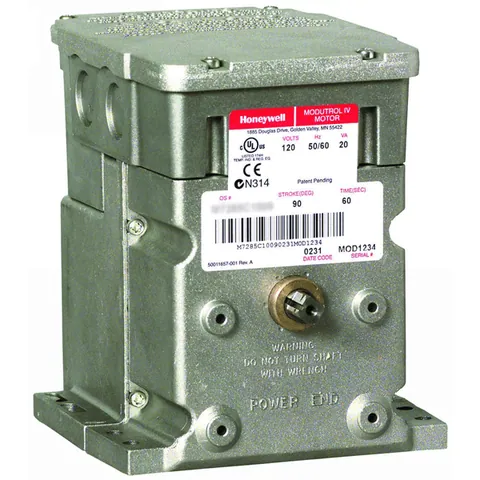

Honeywell M7284A1004/U

The Rotary Actuators, MODUTROL MOTOR is engineered for HVAC systems, providing reliable performance with a supply voltage of 120 V AC. This actuator is compatible with globe valves featuring Q5001 linkage and has an adaptable shaft mounting using a crank arm or linkage. It operates effectively across a temperature range of -40 °F to 150 °F (-40 °C to 60 °C), making it suitable for various environments.

With a torque rating of 150 in·lb (17 Nm) and a runtime of 30 to 60 seconds, it supports a 90° angle of rotation, ensuring precision in adjustments. The actuator features adjustable stroke capabilities, accommodating a symmetrical range of 90° to 160°. Built from die-cast aluminum, it offers durability and a NEMA 3 rating, ensuring protection against environmental factors.

This model includes screw terminals for connection and is compatible with external auxiliary switches like the Q607. Regulatory approvals include EN55011 for emission and EN50082-2 for immunity, alongside UL and cUL listings. The actuator does not include a manual override, but it is designed for modulating control signals within a range of 4-20 mA, enhancing its utility in HVAC applications.
