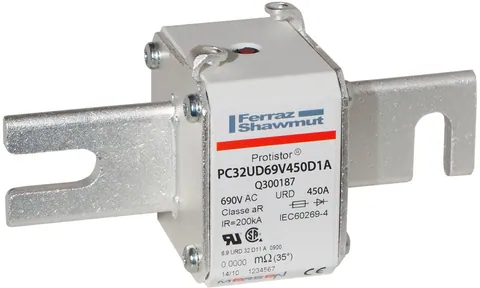

Q300187
1 / 2
Descrizione

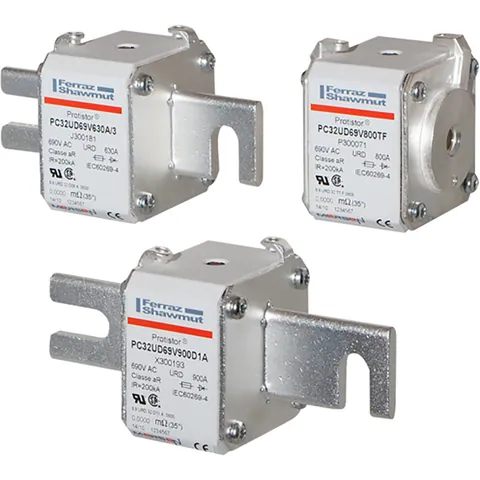

The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. The Protistor® have been engineered to provide state-of-the-art protection for semiconductors diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.- Country of Origin
- FR
- Part Number
- Q300187
- UPC
- 3605340324525
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Invia una richiesta di prezzo
1
Metodi di pagamento:
Specifications
- Ampere Rating
- 450 A
- Rated Voltage Ac Iec
- 690 V
- Rated Voltage Ac Ul
- 700 V
- Ac Max I R Breaking Capacity I1
- 200 kA
- Clearing I2T At Rated Voltage
- 130 kA²s
- Melting I2T
- 22 kA²s
- Power Dissipation At Rated Current Value
- 80 W
- Country Of Origin
- FR
- Product Line
- Protistor® size 32 aR, 450 to 690VAC (IEC) / 700VAC (UL)
- Product Brand
- Protistor®
- Body Insulating Material
- Ceramic
- Connection Terminal Material
- Silver-Plated Copper
- Connection Terminal Type
- DIN Type Blades
- Fuse Size
- 32
- Speed Characteristic
- aR
- Mounting
- Bolted
