Schneider Electric

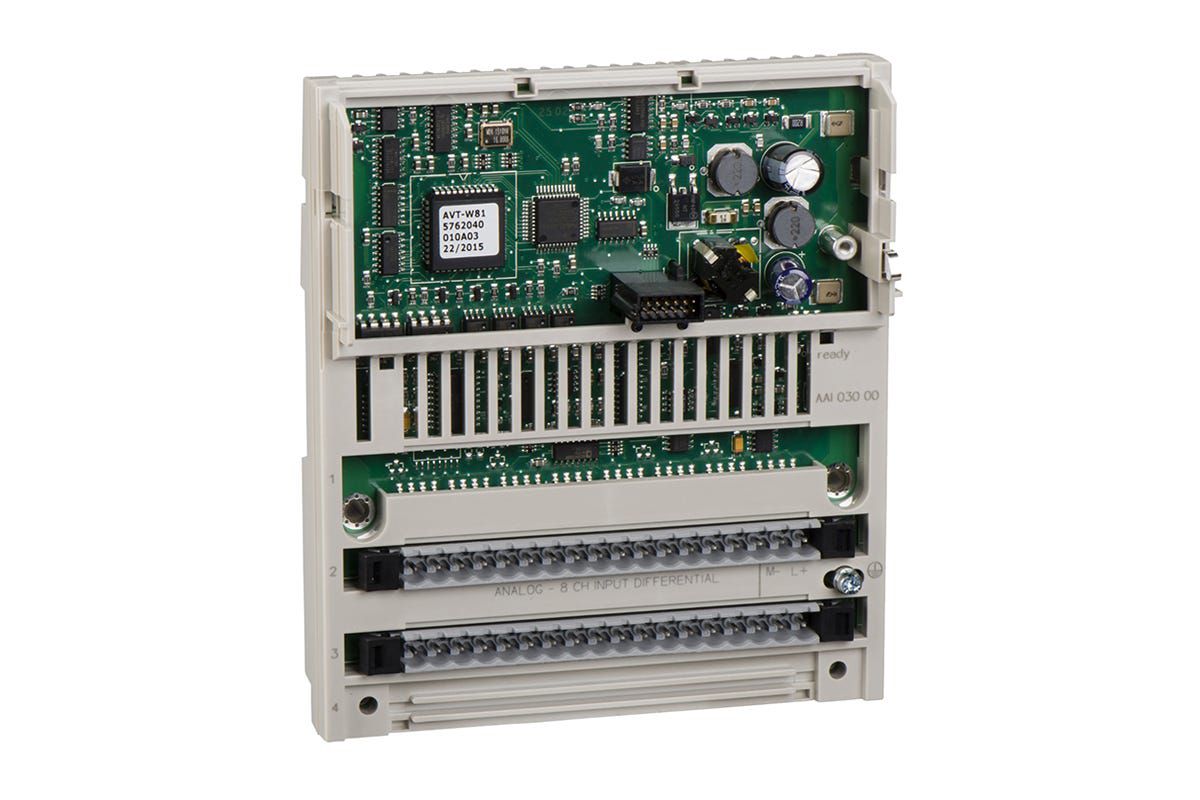

170AAI52040
1 / 2
Descrizione
Attivo maturo
This input base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog input base offers 4 inputs with a full 16bit signed resolution. It offers differential analog input ranges from ±100mV, ±25mV. There is an isolation between channels and bus, channels and ground at 500V AC. It is furnished with 2 removable terminal blocks for electrical connection. It features 4 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.- Country of Origin
- ID
- Part Number
- 170AAI52040
- Tariff Code
- 85389099
- EAN
- 3389110886498
- UNSPSC
- 32151601
€422.40
net€480.00
Spedizione Gratuita!1
Metodi di pagamento:
- Migliore offerta da:
Fornitore Automa.Net di fiducia- Disponibilità:
- 1 pz.DisponibileAggiornato il: 09-11-2024
- Garanzia:
- 24 mesi
- Consegna stimata:
- 14 novembre a Regno Unito
- Condizione:
- Rinnovato
Rinnovato - Un articolo rinnovato ispezionato, pulito e riparato per essere completamente funzionante dal produttore o da un tecnico certificato. L'articolo è in eccellenti condizioni e pienamente operativo.
Informazioni sulla spedizione
Processo di Pagamento Sicuro
Politiche di Reso e Rimborso
Politiche di Spedizione
Politiche di Garanzia
Environment
- Product Certifications
- FM Class 1 Division 2 || CSA || UL
- Ambient Air Temperature For Operation
- 0-60 °C
- Resistance To Electromagnetic Fields
- 10 V/m 80...1000 MHz IEC 801-3
- Ambient Air Temperature For Storage
- -40-85 °C
- Relative Humidity
- 95-95 % without condensation
- Resistance To Electrostatic Discharge
- 4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
- Protective Treatment
- TC
- Operating Altitude
- <= 16404.2 ft (5000 m)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1403005EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Connection
- 2 connectors for removable terminal blocks
- Height
- 125 mm
- Isolation Between Channels And Ground
- 500 V AC for 1 minute
- Current Consumption
- 305 mA 24 V DC
- Data Format
- full 16 bits signed
- Marking
- CE
- External Power Requirement
- +/- 30 V DC
- Associated Fuse Rating
- 500 mA, fast blow
- Net Weight
- 0.215 kg
- Isolation Between Channels
- 400 V DC
- Maximum Power Dissipation In W
- 5.5 W
- Serial Mode Rejection
- 35 dB 50 Hz AC || 45 dB 60 Hz AC
- Permissible Common Mode Voltage
- 100 V DC between channels to ground || 115 V AC single or three phases between channels || 200 V DC between channels || 250 V AC between channels to ground || 250 V AC single phase between channels
- Absolute Accuracy Error
- +/- 21 µV 25 °C +/- 25 mV || +/- 27 µV 25 °C +/- 100 mV || +/- 46 µV 60 °C +/- 25 mV || +/- 94 µV 60 °C +/- 100 mV
- Local Signalling
- for channel status 4 LEDs
- Temperature Probe Type
- Ni 100 0.125 mA +/- 25 mV || Ni 1000 0.125 mA +/- 100 mV || Pt 100 0.125 mA +/- 25 mV || Pt 1000 0.125 mA +/- 100 mV
- Common Mode Rejection
- 120 dB DC between channels || 130 dB 50 Hz AC between channels || 135 dB DC between channels to ground || 140 dB 60 Hz AC between channels || 145 dB 50 Hz AC between channels to ground || 155 dB 60 Hz AC between channels to ground
- Update Time
- 500 ms
- Width
- 141.5 mm
- Depth
- 47.5 mm
- Protection Type
- internal 2 A slow-blow
- Reverse Polarity Protection
- internal
- Isolation Between Supply And Ground
- 500 V for 1 minute
Specifications
- Range Of Product
- Modicon Momentum automation platform
- Analogue Input Range
- +/- 100 mV 15 bits + sign > 10000 kOhm || +/- 25 mV 15 bits + sign > 10000 kOhm
- Thermocouple Type
- thermocouple E || thermocouple S || thermocouple K || thermocouple N || thermocouple B || thermocouple R || thermocouple J || thermocouple T
- Analogue Input Type
- differential
- Product Or Component Type
- analogue input base
- Analogue Input Number
- 4
