Schneider Electric
8502SAO12V02S

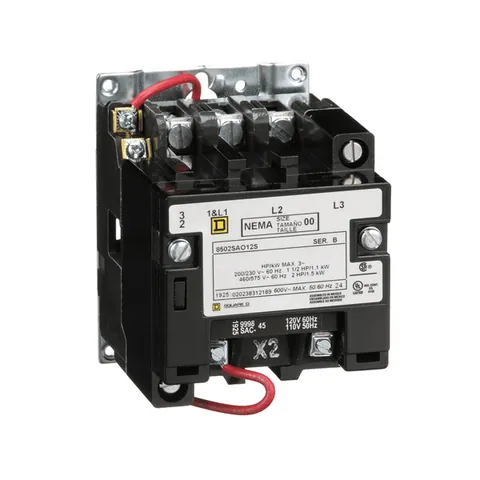

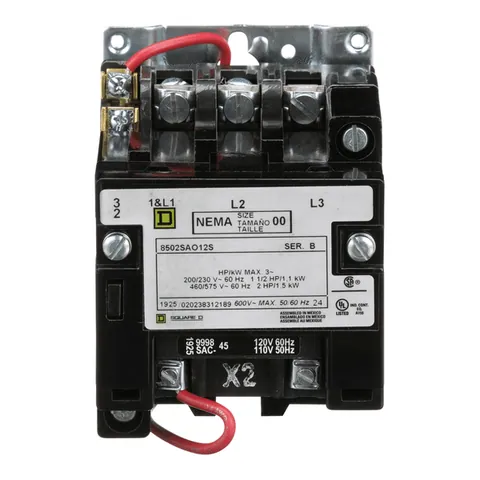

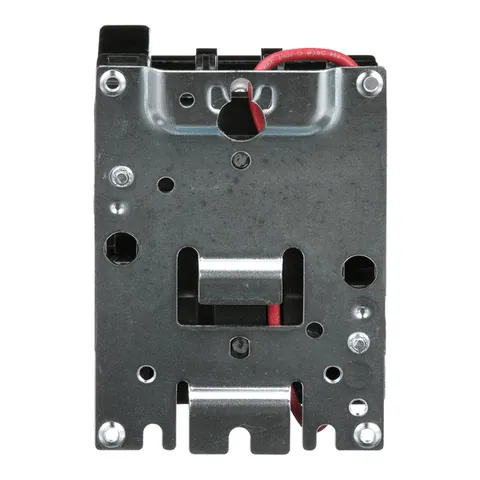

NEMA Contactor, Type S, nonreversing, Size 00, 9A, 3HP at 575VAC, 3 phase, up to 100kA, 3 pole, 120VAC coil, open
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Invia una richiesta di prezzo
1
Metodi di pagamento:
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
Invia una richiesta di prezzo
Additional Information
- Part Number
- 8502SAO12V02S
- UPC
- 785901770725
- UNSPSC
- 39121529
- Tariff Code
- 8536490065
- Country of Origin
- MX
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Not compliant
Environmental
- Product Certifications
- UL listed file E78351 CCN NLDX || CSA
- Nema Degree Of Protection
- not rated (open device)
Complementary
- Height
- 110.24 mm
- Auxiliary Contact Composition
- without
- Nema Size
- 00
- [Uc] Control Circuit Voltage
- 120 V AC 60 Hz || 110 V AC 50 Hz
- Rated Power In Hp
- 1.5 HP 200 V AC || 1.5 HP 230 V AC || 2 HP 460 V AC || 2 HP 575 V AC
- Product Compatibility
- circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC || fuse J 60 A maximum, SCCR: 100 kA at 600 V AC || fuse T 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC
- Control Type
- no control units
- Phase
- 3 phase
- Local Signalling
- no indicator
- Poles Description
- 3P
- Electrical Connection
- screw clamp terminals
- Provided Equipment
- fuse not supplied
- Line Rated Current
- 9 A
- Control Circuit
- separate control circuit
- Width
- 81.79 mm
- Depth
- 107.19 mm
- [Ue] Rated Operational Voltage
- 600 V AC
Specifications
- Range Of Product
- 8502S
- Contactor Application
- non-reversing
- Product Or Component Type
- contactor
