Schneider Electric
ABE7R16T111

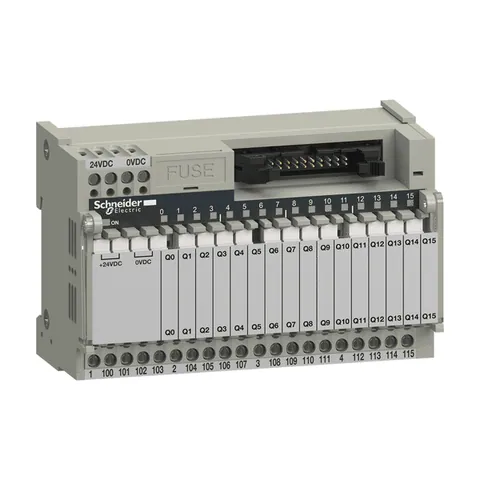

Sub-base with plug-in electromechanical relay ABE7, 16 channels, relay 5 mm
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
$808.85
1
Metodi di pagamento:
Un totale di 38 Parts In-Stock da 26 Distributors
Condizioni del prodotto:
Additional Information
- Part Number
- ABE7R16T111
- UNSPSC
- 32151603
- Tariff Code
- 8537109170
- Country of Origin
- LV
Environment
- Product Certifications
- CSA || UL || DNV || GL || EAC
- Resistance To Radiated Fields
- 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2
- Vibration Resistance
- 2 gn 10-150 Hz)IEC 60068-2-6
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
- Pollution Degree
- 2 IEC 60664-1
- Resistance To Incandescent Wire
- 750 °C 30 s IEC 60695-2-11
- Ambient Air Temperature For Storage
- -40-80 °C IEC 61131-2
- Resistance To Electrostatic Discharge
- 4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP121229EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1212029EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Mounting Mode
- by clips 35 mm DIN rail) || by screws surface mount with kit)
- Maximum Current Per Module
- 12 A
- Short-Circuit Protection
- 1 A internal fuse, 5 x 20 mm, fast blow PLC end)
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV
- Status Led
- 1 LED power ON || 1 LED per channel channel status
- Installation Category
- II IEC 60664-1
- Maximum Current Per Output Common
- 5 A screw type terminals
- Net Weight
- 0.6 kg
- Contacts Type And Composition
- 1 NO
- [Ui] Rated Insulation Voltage
- 2000 V terminals/mounting rails || 300 V coil circuit/contact circuits IEC 60947-1
- Polarity Distribution
- common distribution group of 4
- Tightening Torque
- 0.6 N.m flat Ø 3.5 mm
- Maximum Supply Current
- 1 A
- Supply Circuit Type
- DC
- Voltage Drop On Power Supply Fuse
- 0.3 V
- Product Compatibility
- ABR7S11
Specifications
- Range Of Product
- Modicon ABE7
- Product Or Component Type
- sub-base with plug-in electromechanical relay
- Connections - Terminals
- screw type terminals, 1 x 0.14...1 x 1.5 mm² AWG 26...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 1 x 0.14...1 x 4 mm² AWG 26...AWG 12) solid || screw type terminals, 2 x 0.14...2 x 0.75 mm² AWG 26...AWG 18) flexible with cable end || screw type terminals, 2 x 0.14...2 x 1.5 mm² AWG 26...AWG 16) solid
- Number Of Channels
- 16
- Sub-Base Type
- output sub-base
- [Us] Rated Supply Voltage
- 19...30 V IEC 61131-2
