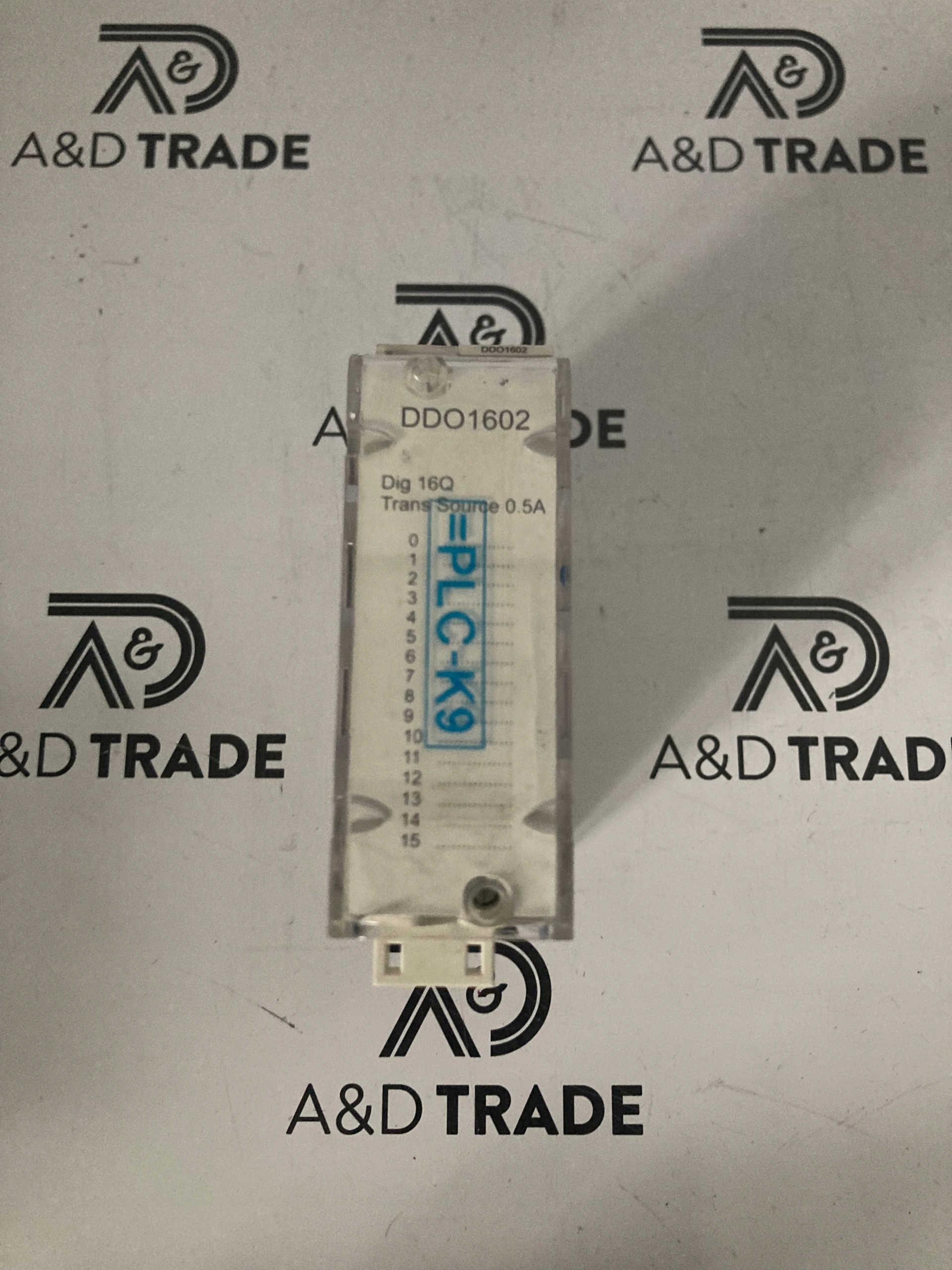

BMXDDO1602

Additional Information

Part Number

BMXDDO1602

UNSPSC

32151706

Tariff Code

8538908180

Country of Origin

ID

Environment

Ambient Air Temperature For Operation

0-60 °C

Shock Resistance

30 gn

Dielectric Strength

1500 V AC 50/60 Hz 1 minute, output/ground || 1500 V AC 50/60 Hz 1 minute, output/internal logic

Vibration Resistance

3 gn

Directives

2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility

Ambient Air Temperature For Storage

-40-85 °C

Relative Humidity

5-95 % 55-55 °C without condensation

Operating Altitude

0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor

Ip Degree Of Protection

IP20

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Mtbf Reliability

410000 H

Maximum Current Per Module

10 A

Switching Frequency

0.5/LI² Hz

Status Led

1 LED (Green) module operating (RUN) || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) module error (ERR) || 1 LED (Red) module I/O

Voltage Detection Threshold

< 14 V DC preactuator fault || > 18 V DC preactuator at state 0

Current Per Channel

0.625 A

Maximum Voltage Drop

<1.2 V at state 1

Insulation Resistance

> 10 MOhm 500 V DC

Protection Type

external fuse reverse polarity protection || short-circuit protection || overload protection || overvoltage protection

Power Dissipation In W

4 W

Net Weight

0.12 kg

Maximum Leakage Current

0.5 mA at state 0

Load Impedance Ohmic

> 48 Ohm

Paralleling Of Outputs

yes : 2 maximum

Typical Current Consumption

79 mA 3.3 V DC

Output Overvoltage Protection

with transil diode

Output Short-Circuit Protection

with 2 A external fuse

Output Overload Protection

with electronic circuit breaker 1.5 In < Id < 2 In || with current limiter

Maximum Tungsten Load

6 W

Reverse Polarity Protection

reverse mounted diode

Response Time On Output

1.2 ms

Specifications

Discrete Output Type

solid state

Range Of Product

Modicon X80

Discrete Output Number

16 EN/IEC 61131-2

Discrete Output Logic

positive

Discrete Output Voltage

24 V 19...30 V DC

Product Or Component Type

discrete output module

Discrete Output Current

0.5 A
