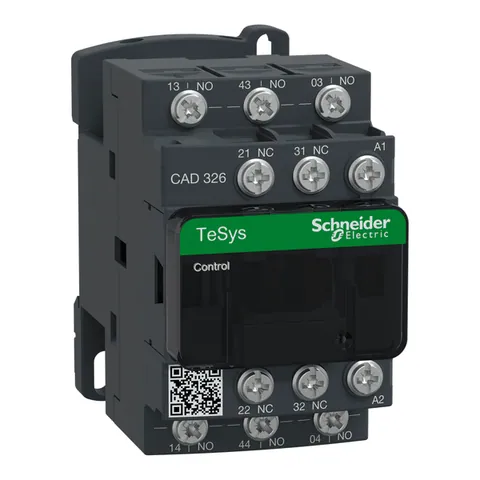

CAD326P7

Environment

Product Certifications

CB Scheme || CCC || UL || CSA || EAC || CE || UKCA

Ambient Air Temperature For Operation

-40-60 °C || 60-70 °C with derating

Standards

EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1

Ambient Air Temperature For Storage

-60-80 °C

Protective Treatment

TH IEC 60068

Ip Degree Of Protection

IP2X front face VDE 0106

Operating Altitude

0...9842.52 ft (0...3000 m)

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1501004

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Product out of China RoHS scope. Substance declaration for your information.

Circularity Profile

ENVEOLI1501004

Eu Rohs Directive

Compliant with Exemptions

Complementary

Non-Overlap Time

1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact

Minimum Switching Current

5 mA

Mechanical Robustness

shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6

[Ue] Rated Operational Voltage

<= 690 V AC 25...400 Hz

Height

77 mm

[Ith] Conventional Free Air Thermal Current

10 A (at 60 °C)

Control Circuit Voltage Limits

0.3...0.6 Uc -40-70 °C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60 °C operational AC 50 Hz || 0.85...1.1 Uc -40-60 °C operational AC 60 Hz || 1...1.1 Uc 60-70 °C operational AC 50/60 Hz

Mounting Support

rail || plate

Control Circuit Type

AC 50/60 Hz

[Uc] Control Circuit Voltage

230 V AC 50/60 Hz

Insulation Resistance

> 10 MOhm

Irms Rated Making Capacity

140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1

Associated Fuse Rating

10 A gG conforming to IEC 60947-5-1

Net Weight

0.58 kg

Inrush Power In Va

70-70 VA 50 Hz (at 20 °C)

[Uimp] Rated Impulse Withstand Voltage

6 kV IEC 60947

Connections - Terminals

lugs-ring terminals 8 mm)

Pole Contact Composition

3 NO + 2 NC

Utilisation Category

AC-14 || DC-13 || AC-15

Minimum Switching Voltage

17 V

Maximum Operating Rate

180 cyc/mn

Mechanical Durability

30 Mcycles

Hold-In Power Consumption In Va

8-8 VA 50 Hz (at 20 °C)

Operating Time

12...22 ms coil energisation and NO closing || 4...12 ms coil de-energisation and NO opening || 4...19 ms coil energisation and NC opening || 6...17 ms coil de-energisation and NC closing

Width

45 mm

Depth

84 mm

[Ui] Rated Insulation Voltage

600 V UL || 600 V CSA || 690 V IEC 60947-5-1

[Icw] Rated Short-Time Withstand Current

100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms

Specifications

Contactor Application

control circuit

Product Or Component Type

control relay

Product Name

TeSys CAD

Range

TeSys || TeSys Deca

Device Short Name

CAD
