Schneider Electric HDA36080

The PowerPacT H-Frame circuit breakers are designed to safeguard electrical systems against damage caused by overloads and short circuits. These circuit breakers are available in either thermal magnetic or Micrologic electronic trip protection units. The PowerPacT H-Frame circuit breaker offers thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers come equipped with dual-break rotating contacts, which help reduce the peak current during a short circuit fault. The circuit breakers also have an integral push-to-trip button in the cover for manual tripping.

PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. The PowerPacT H I-Line circuit breaker is designed for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side.

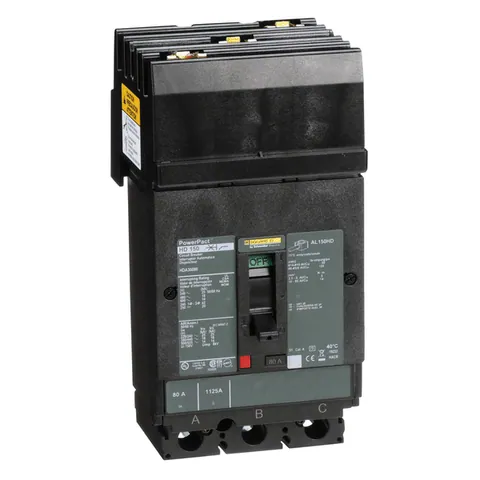

This PowerPacT H, 80A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. It also has a continuous current rating of 80% with an ABC phase connection. The PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
