Schneider Electric
HGL36000S15

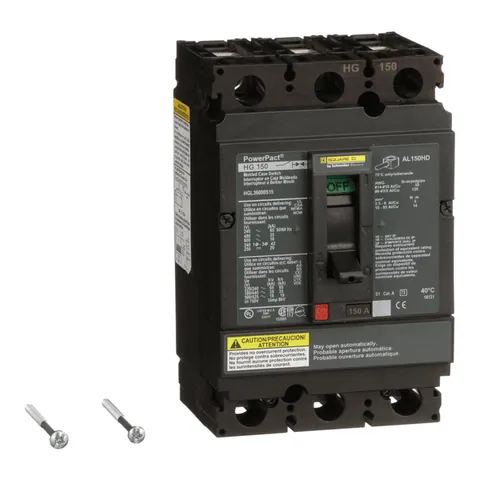

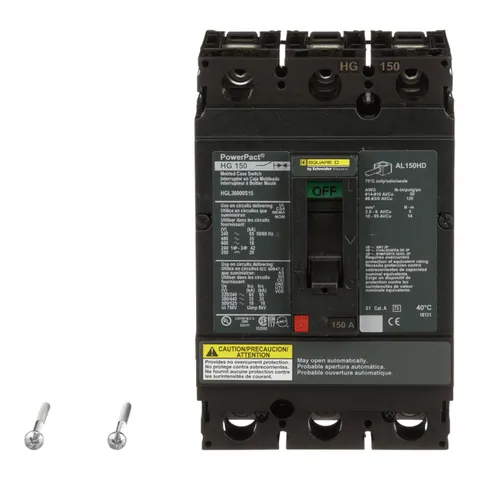

Automatic switch, PowerPacT H, 150A, 3 pole, 600VAC, 18kA, lugs, magnetic
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Invia una richiesta di prezzo
1
Metodi di pagamento:
Additional Information
- Part Number
- HGL36000S15
- UPC
- 785901433958
- UNSPSC
- 39122245
- Tariff Code
- 8536200020
- Country of Origin
- MX
Environment
- Product Certifications
- CE || IEC || NMX || UL Listed || CCC || CSA
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2206027EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI2206027EN
- Eu Rohs Directive
- Compliant with Exemptions
Complementary
- Terminal Identifier
- AL150HD
- Height
- 6.4 in
- Tightening Torque
- 5-5 N.m 2.5-95 mm² (AWG 14...AWG 3/0)
- Breaking Capacity Code
- G
- Magnetic Tripping Current
- 2250-2250 A
- Electrical Connection
- lugs, line || lugs, load
- Mounting Mode
- unit mount
- Short-Circuit Withstand
- 65 kA 240 V UL 489 || 35 kA 480 V UL 489 || 18 kA 600 V UL 489
- Poles Description
- 3P
- Line Rated Current
- 150 A
- Width
- 2.12 in
- Depth
- 4.36 in
- [Ue] Rated Operational Voltage
- 600 V AC || 250 V DC
- Awg Gauge
- x AWG 14...AWG 3/0 ( aluminium/copper )
Specifications
- Range Of Product
- PowerPact H
- Product Or Component Type
- automatic switch
- Trip Unit Technology
- magnetic
