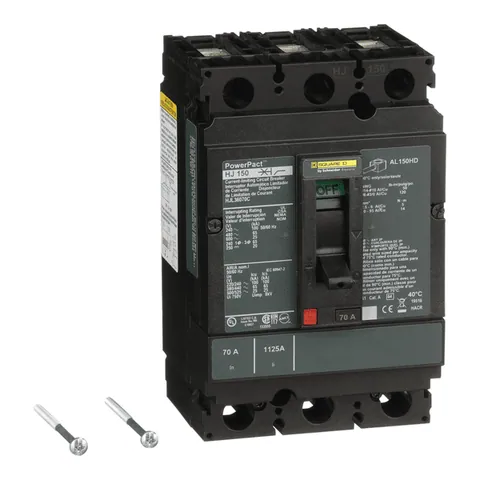

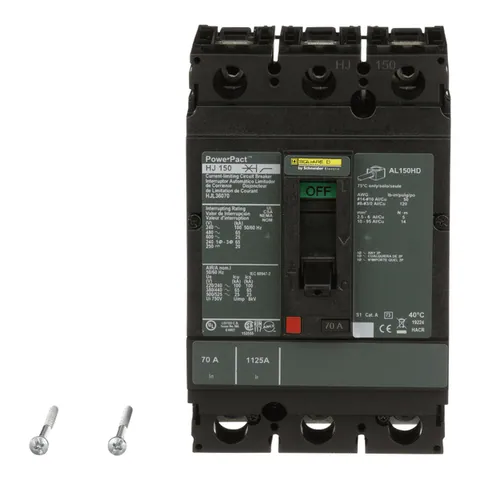

Schneider Electric HJL36070C

The circuit breaker provides protection for electrical systems against overloads and short circuits, ensuring reliability in various operational environments. This variant, with a continuous current rating of 100%, is equipped with thermal magnetic trip technology and has a breaking capacity of 25kA at 600VAC, making it suitable for high-demand applications.

Designed for unit mount installation, the breaker features lugs on both the line and load sides for secure connections. It operates effectively within an ambient temperature range of -2 to 70 °C and can withstand storage temperatures from -50 to 85 °C. Compliance with UL, CSA, NOM, and IEC standards confirms its suitability for industrial use.

With a net weight of 2.2 kg and dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth, this circuit breaker can be seamlessly integrated into existing setups. It also includes dual-break rotating contacts that minimize peak current during fault conditions, enhancing safety and operational integrity.

Additionally, the breaker is equipped with a push-to-trip button for manual operation and comes with a magnetic hold current of 800 A. Its robust design ensures it meets category A utilization and is HACR rated for various load types, ensuring versatility in distribution applications.
