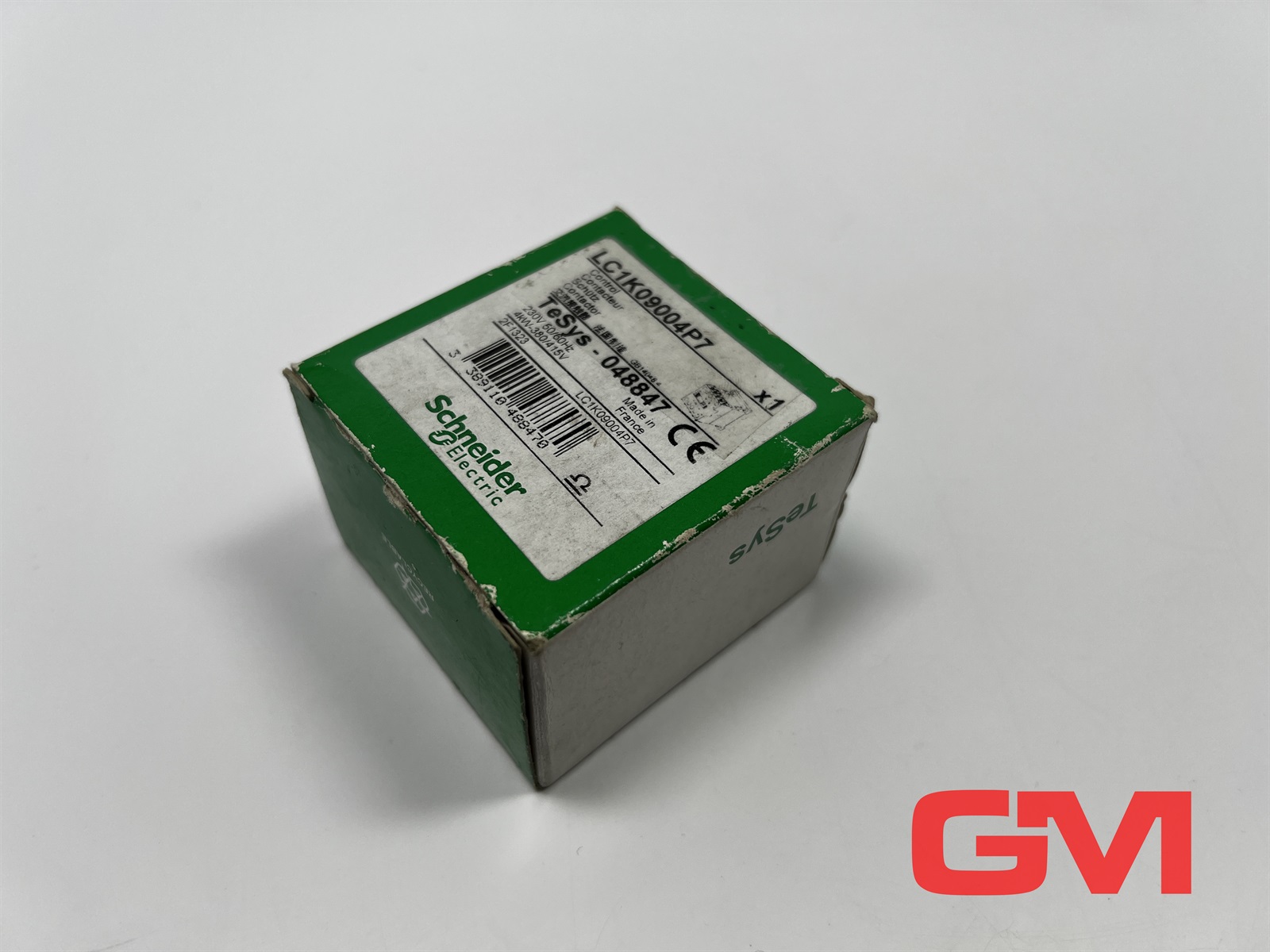

LC1K09004P7

Environment

Product Certifications

CB Scheme || CCC || UL || CSA || EAC || CE || UKCA

Standards

EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1

Flame Retardance

V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102

Ambient Air Temperature For Storage

-50-80 °C

Protective Treatment

TC IEC 60068 || TC DIN 50016

Ip Degree Of Protection

IP2X VDE 0106

Operating Altitude

6561.68 ft (2000 m) without derating

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1503003EN

Sustainable Offer Status

Green Premium product

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Reach Free Of Svhc

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Circularity Profile

ENVEOLI1503003EN

Eu Rohs Directive

Compliant

Complementary

Mechanical Robustness

shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 || vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 || vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6

[Uc] Control Circuit Voltage

230 V AC 50/60 Hz

[Ue] Rated Operational Voltage

power circuit <= 690 V AC <= 400 Hz || signalling circuit <= 690 V AC <= 400 Hz

Height

58 mm

Average Impedance

3 mOhm - Ith 20 A 50 Hz for power circuit

Control Circuit Voltage Limits

operational: 0.8...1.15 Uc (at <50 °C) || drop-out: >= 0.20 Uc (at <50 °C)

[Ith] Conventional Free Air Thermal Current

20 A (at 60 °C) for power circuit || 10 A (at 50 °C) for signalling circuit

Mounting Support

plate || rail

Control Circuit Type

AC 50/60 Hz

Safety Reliability Level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Rated Breaking Capacity

110 A at 220...230 V conforming to IEC 60947 || 110 A at 380...400 V conforming to IEC 60947 || 110 A at 415 V conforming to IEC 60947 || 110 A at 440 V conforming to IEC 60947 || 80 A at 500 V conforming to IEC 60947 || 70 A at 660...690 V conforming to IEC 60947

Irms Rated Making Capacity

110 A AC for power circuit conforming to IEC 60947

Associated Fuse Rating

25 A gG at <= 440 V for power circuit || 25 A aM for power circuit

Net Weight

0.18 kg

[Uimp] Rated Impulse Withstand Voltage

8 kV

Inrush Power In Va

30-30 VA (at 20 °C)

Connections - Terminals

screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-2.5 mm²flexible with cable end || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 2 0.34-1.5 mm²flexible with cable end

Pole Contact Composition

4 NO

Utilisation Category

AC-1

[Ie] Rated Operational Current

20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit

Maximum Operating Rate

3600 cyc/h

Signalling Circuit Frequency

<= 400 Hz

Electrical Durability

0.16 Mcycles 20 A AC-1 <= 690 V

Mechanical Durability

10 Mcycles

Poles Description

4P

Hold-In Power Consumption In Va

4.5-4.5 VA (at 20 °C)

Operating Time

10...20 ms coil de-energisation and NO opening || 10...20 ms coil energisation and NO closing

Width

45 mm

Tightening Torque

0.8-1.3 N.m screw clamp terminals Philips No 2 || 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm || 0.8-1.3 N.m screw clamp terminals pozidriv No 2

Overvoltage Category

III

Depth

57 mm

[Ui] Rated Insulation Voltage

power circuit 600 V UL 508 || power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA C22.2 No 14

[Icw] Rated Short-Time Withstand Current

90 A 50 °C - 1 s for power circuit || 85 A 50 °C - 5 s for power circuit || 80 A 50 °C - 10 s for power circuit || 60 A 50 °C - 30 s for power circuit || 45 A 50 °C - 1 min for power circuit || 40 A 50 °C - 3 min for power circuit || 20 A 50 °C - >= 15 min for power circuit

Heat Dissipation

1.3-1.3 W

Specifications

Contactor Application

resistive load

Product Or Component Type

contactor

Range

TeSys

Device Application

control

Device Short Name

LC1K
