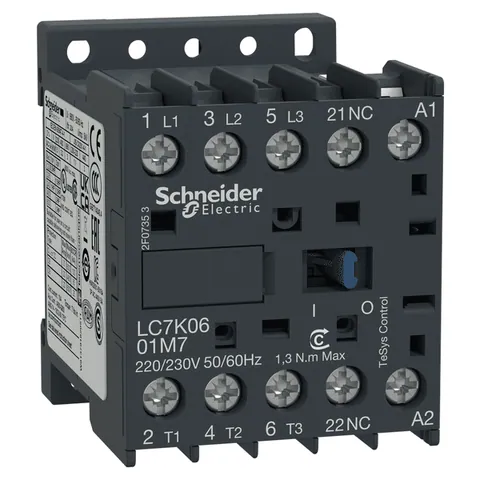

LC7K0601M7

Environment

Product Certifications

CB Scheme || CCC || UL || CSA || EAC || CE || UKCA

Standards

EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1

Flame Retardance

V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102

Ambient Air Temperature For Storage

-50-80 °C

Protective Treatment

TC IEC 60068 || TC DIN 50016

Ip Degree Of Protection

IP2X VDE 0106

Operating Altitude

6561.68 ft (2000 m) without derating

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1503003EN

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Product out of China RoHS scope. Substance declaration for your information.

Circularity Profile

ENVEOLI1503003EN

Eu Rohs Directive

Compliant with Exemptions

Complementary

Minimum Switching Current

5 mA for signalling circuit

Mechanical Robustness

shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 || vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 || vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6

[Uc] Control Circuit Voltage

220...230 V AC 50/60 Hz

[Ue] Rated Operational Voltage

power circuit <= 690 V AC <= 400 Hz || signalling circuit <= 690 V AC <= 400 Hz

Height

58 mm

Average Impedance

3 mOhm - Ith 20 A 50 Hz for power circuit

Auxiliary Contact Composition

1 NC

Control Circuit Voltage Limits

operational: 0.85...1.1 Uc (at <50 °C) || drop-out: >= 0.10 Uc (at <50 °C)

Non Overlap Distance

0.5 mm

[Ith] Conventional Free Air Thermal Current

20 A (at 60 °C) for power circuit || 10 A (at 50 °C) for signalling circuit

Mounting Support

rail || plate

Control Circuit Type

AC 50/60 Hz silent

Safety Reliability Level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Insulation Resistance

> 10 MOhm for signalling circuit

Rated Breaking Capacity

110 A at 220...230 V conforming to IEC 60947 || 110 A at 380...400 V conforming to IEC 60947 || 110 A at 415 V conforming to IEC 60947 || 110 A at 440 V conforming to IEC 60947 || 80 A at 500 V conforming to IEC 60947 || 70 A at 660...690 V conforming to IEC 60947

Irms Rated Making Capacity

110 A AC for power circuit conforming to IEC 60947 || 110 A AC for signalling circuit conforming to IEC 60947

Motor Power Kw

1.5 kW 220...230 V AC 50/60 Hz AC-3 || 2.2 kW 380...415 V AC 50/60 Hz AC-3 || 3 kW 440/690 V AC 50/60 Hz AC-3 || 1.5 kW 220...230 V AC 50/60 Hz AC-3e || 2.2 kW 380...415 V AC 50/60 Hz AC-3e || 3 kW 440/690 V AC 50/60 Hz AC-3e || 1.5 kW 220...230 V AC 50/60 Hz AC-4 || 2.2 kW 380...415 V AC 50/60 Hz AC-4 || 3 kW 440/690 V AC 50/60 Hz AC-4

Associated Fuse Rating

25 A gG at <= 440 V for power circuit || 25 A aM for power circuit || 10 A gG for signalling circuit conforming to IEC 60947 || 10 A gG for signalling circuit conforming to VDE 0660

Net Weight

0.225 kg

[Uimp] Rated Impulse Withstand Voltage

8 kV

Inrush Power In Va

3-3 VA (at 20 °C)

Connections - Terminals

screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-2.5 mm²flexible with cable end || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 2 0.34-1.5 mm²flexible with cable end

Pole Contact Composition

3 NO

Utilisation Category

AC-3 || AC-3e || AC-4

[Ie] Rated Operational Current

6 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 6 A (at <60 °C) at <= 440 V AC AC-3e for power circuit

Minimum Switching Voltage

17 V for signalling circuit

Maximum Operating Rate

3600 cyc/h

Signalling Circuit Frequency

<= 400 Hz

Electrical Durability

1.3 Mcycles 6 A AC-3 <= 440 V || 1.3 Mcycles 6 A AC-3e <= 440 V || 0.05 Mcycles 36 A AC-4 <= 440 V

Mechanical Durability

10 Mcycles

Auxiliary Contacts Type

instantaneous 1 NC

Poles Description

3P

Hold-In Power Consumption In Va

3-3 VA (at 20 °C)

Operating Time

30...40 ms coil energisation and NO closing || 30 ms coil de-energisation and NO opening

Width

45 mm

Tightening Torque

0.8-1.3 N.m screw clamp terminals Philips No 2 || 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm || 0.8-1.3 N.m screw clamp terminals pozidriv No 2

Overvoltage Category

III

Depth

57 mm

[Ui] Rated Insulation Voltage

power circuit 600 V UL 508 || power circuit 690 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-5-1 || signalling circuit 600 V UL 508 || power circuit 600 V CSA C22.2 No 14 || signalling circuit 600 V CSA C22.2 No 14

[Icw] Rated Short-Time Withstand Current

90 A 50 °C - 1 s for power circuit || 85 A 50 °C - 5 s for power circuit || 80 A 50 °C - 10 s for power circuit || 60 A 50 °C - 30 s for power circuit || 45 A 50 °C - 1 min for power circuit || 40 A 50 °C - 3 min for power circuit || 20 A 50 °C - >= 15 min for power circuit || 80 A - 1 s for signalling circuit || 90 A - 500 ms for signalling circuit || 110 A - 100 ms for signalling circuit

Heat Dissipation

3-3 W

Specifications

Contactor Application

motor control

Product Or Component Type

contactor

Range

TeSys

Device Application

control

Device Short Name

LC7K
