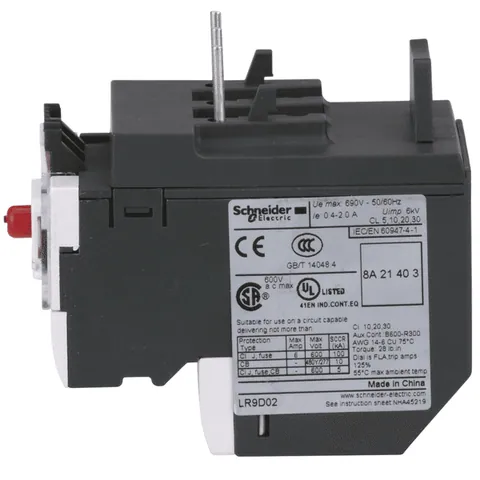

LR9D02

Specifications

Thermal Protection Adjustment Range

0.4-2 A

Power Consumption In W

300 mW

Relay Application

motor protection

Product Or Component Type

electronic thermal overload relay

Product Name

TeSys LRD

Thermal Overload Class

class 5…30

Range

TeSys

Mounting Support

under contactor || plate, with specific accessories || rail, with specific accessories

Product Compatibility

LC1D25 || LC1D09 || LC1D32 || LC1D38 || LC1D18 || LC1D12

Device Short Name

LR9D

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1502001EN

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Product out of China RoHS scope. Substance declaration for your information.

Circularity Profile

ENVEOLI1502001EN

Eu Rohs Directive

Compliant with Exemptions

Environment

Product Certifications

IECEE CB Scheme || UL || CSA || CCC

Mechanical Robustness

vibrations 10...150 Hz6 Gn IEC 60068-2-6 || shocks 11 ms15 gn IEC 60068-2-7

Standards

EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5

Ambient Air Temperature For Operation

-25-70 °C IEC 60255-8

Dielectric Strength

6 kV 50 Hz IEC 60255-5

Ambient Air Temperature For Storage

-55-80 °C

Ip Degree Of Protection

IP20 front face IEC 60529

Operating Altitude

6561.68 ft (2000 m) without derating

Complementary

Time Range

1.5...4 min - automatic reset time

Height

72.5 mm

[Ith] Conventional Free Air Thermal Current

5 A signalling circuit

Tightening Torque

control circuit 0.8 N.m screw clamp terminals || power circuit 3.1 N.m screw clamp terminals

Phase Failure Sensitivity

phase difference > 40% 3-3 s IEC 60947-4-1

[Ue] Rated Operational Voltage

690 V power circuit || 660 V signalling circuit

Electromagnetic Compatibility

surge withstand 2 kV common mode IEC 61000-4-5 || resistance to electrostatic discharge 8 kV IEC 61000-4-2 || immunity to radiated radio-electrical interference 10 V/m IEC 61000-4-3 || immunity to fast transients 2 kV IEC 61000-4-4

Associated Fuse Rating

5 A gG for signalling circuit || 5 A BS for signalling circuit

Net Weight

0.18 kg

[Uimp] Rated Impulse Withstand Voltage

6 kV

Connections - Terminals

control circuit screw clamp terminals 1 2.5-2.5 mm² solid or flexible - without cable end || power circuit screw clamp terminals 1 16-16 mm² solid or flexible - without cable end

[Ui] Rated Insulation Voltage

power circuit 1000 V || signalling circuit 690 V

Tripping Threshold

1.25 In IEC 60947-4-1

Control Type

Red push-button stop and manual reset || White 2 microswitches adjustable trip class || Red knob automatic reset || White dial full-load current adjustment

Width

45 mm

Depth

79.9 mm
