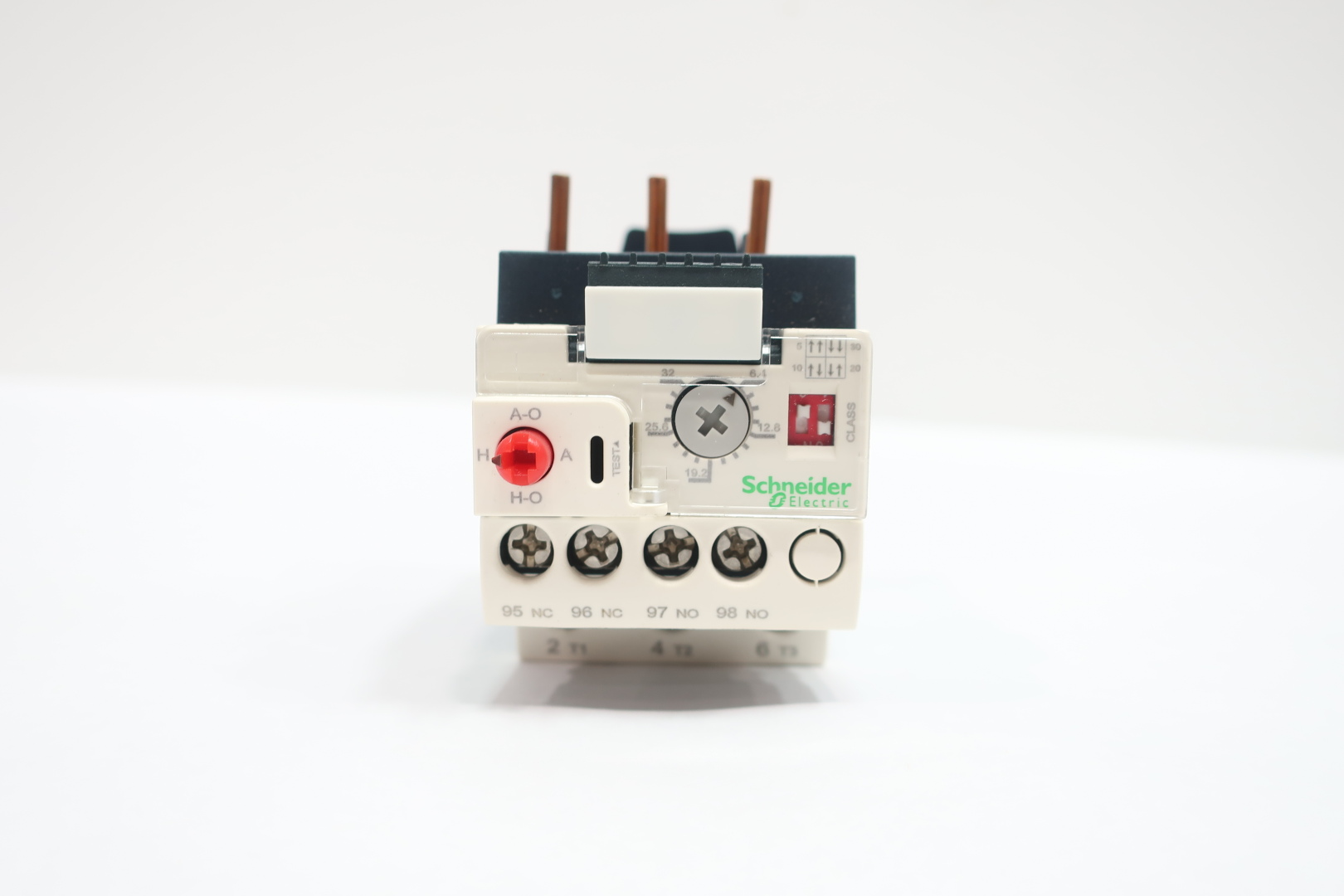

LR9D32
Overload relay, TeSys LRD, motor protection, 6.4A to 32A, 3 phase, withstand 6kV impulse, 2kV surge, electronic thermal
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Invia una richiesta di prezzo
1
Metodi di pagamento:
Un totale di 21 Parts In-Stock da 13 Distributors
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:1 - 2 Molti giorni lavorativi
Miglior prezzo:
€36.37
Additional Information
- Part Number
- LR9D32
- UNSPSC
- 39122330
- Tariff Code
- 8536490075
- Country of Origin
- CN
Specifications
- Thermal Protection Adjustment Range
- 6.4-32 A
- Power Consumption In W
- 300 mW
- Relay Application
- motor protection
- Product Or Component Type
- electronic thermal overload relay
- Product Name
- TeSys LRD
- Thermal Overload Class
- class 5…30
- Range
- TeSys
- Mounting Support
- under contactor || plate, with specific accessories || rail, with specific accessories
- Product Compatibility
- LC1D09 || LC1D25 || LC1D32 || LC1D38 || LC1D12 || LC1D18
- Device Short Name
- LR9D
Complementary
- Time Range
- 1.5...4 min - automatic reset time
- Height
- 72.5 mm
- [Ith] Conventional Free Air Thermal Current
- 5 A signalling circuit
- Tightening Torque
- control circuit 0.8 N.m screw clamp terminals || power circuit 3.1 N.m screw clamp terminals
- Phase Failure Sensitivity
- phase difference > 40% 3-3 s IEC 60947-4-1
- [Ue] Rated Operational Voltage
- 690 V power circuit || 660 V signalling circuit
- Electromagnetic Compatibility
- surge withstand 2 kV common mode IEC 61000-4-5 || resistance to electrostatic discharge 8 kV IEC 61000-4-2 || immunity to radiated radio-electrical interference 10 V/m IEC 61000-4-3 || immunity to fast transients 2 kV IEC 61000-4-4
- Associated Fuse Rating
- 5 A gG for signalling circuit || 5 A BS for signalling circuit
- Net Weight
- 0.18 kg
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Connections - Terminals
- control circuit screw clamp terminals 1 2.5-2.5 mm² solid or flexible - without cable end || power circuit screw clamp terminals 1 16-16 mm² solid or flexible - without cable end
- [Ui] Rated Insulation Voltage
- power circuit 1000 V || signalling circuit 690 V
- Tripping Threshold
- 1.25 In IEC 60947-4-1
- Control Type
- Red push-button stop and manual reset || White 2 microswitches adjustable trip class || Red knob automatic reset || Gray dial full-load current adjustment
- Width
- 45 mm
- Depth
- 79.9 mm
Environment
- Product Certifications
- IECEE CB Scheme || UL || CSA || CCC
- Mechanical Robustness
- vibrations 10...150 Hz6 Gn IEC 60068-2-6 || shocks 11 ms15 gn IEC 60068-2-7
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5
- Ambient Air Temperature For Operation
- -25-70 °C IEC 60255-8
- Dielectric Strength
- 6 kV 50 Hz IEC 60255-5
- Ambient Air Temperature For Storage
- -55-80 °C
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Operating Altitude
- 6561.68 ft (2000 m) without derating
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1502001EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1502001EN
- Eu Rohs Directive
