Schneider Electric
LV851001SP

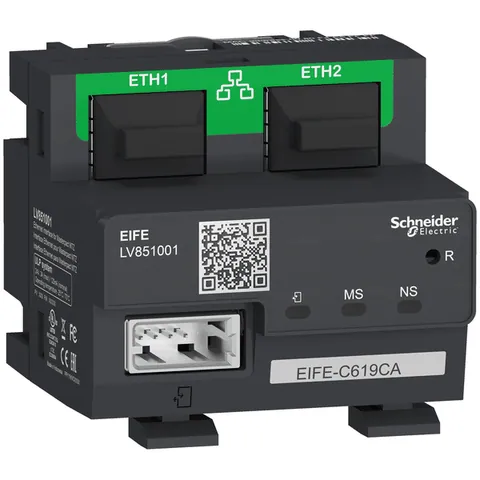

Embedded Ethernet interface EIFE, MasterPact MTZ1/MTZ2/MTZ3 drawout, spare part
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
2423,29 zł
1
Metodi di pagamento:
Un totale di 2 Parts In-Stock da 13 Distributors
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
€222.34
Additional Information
- Part Number
- LV851001SP
- UNSPSC
- 39121601
- Tariff Code
- 8544429090
Environment
- Ambient Air Temperature For Operation
- -20-70 °C
- Ip Degree Of Protection
- IP30
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2305013EN
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI2305013EN
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free plastic parts product
Complementary
- Product Certifications
- EAC || CE || FCC
- Height
- 51 mm
- Standards
- IEC 60947-6-2 || IACS E10 || IEC 60950
- Provided Equipment
- 1 instruction sheet
- Localisation On Device
- chassis
- Mounting Support
- DIN rail
- Offer Type
- spare part
- Power Consumption In W
- 72 W
- Net Weight
- 0.075 kg
- Communication Network Type
- ULP, CANopen USB || Ethernet, Ethernet TCP/IP 10/100 Mbps RJ45
- Mounting Mode
- drawout
- Maximum Supply Current
- 3 A
- Communication Gateway
- Ethernet TCP/IP to Modbus
- Width
- 51 mm
- Depth
- 52.5 mm
- Web Server
- embedded
Specifications
- Device Mounting
- embedded
- Range Compatibility
- Masterpact MasterPact MTZ2 circuit breaker || Masterpact MasterPact MTZ3 circuit breaker
- Product Or Component Type
- Ethernet interface module
- Range
- MasterPact
- Device Application
- communication
