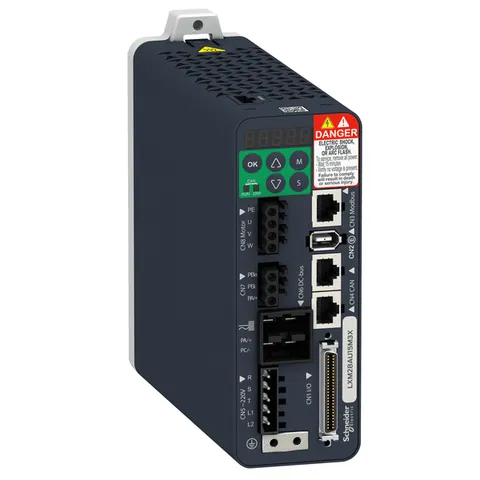

Schneider Electric LXM28AU15M3X

The Lexium 28 Single and Three Phase Servo Drive is a versatile motion control solution from Schneider Electric. It features an EMC filter, integrated CANopen, and a 7-segment display with 5 buttons for easy operation.

With a rated supply voltage of 200-240V (single and three phase), this servo drive delivers an output current of 7A, nominal power of 1.5kW, and continuous power of 1500W. It is equipped with spring terminal for electrical connection and RJ45 connectors (CN4) for CANopen/CAN motion.

The Lexium 28 Servo Drive offers electrical isolation between power/control, providing a safe and reliable operation. It supports both CANopen and CAN motion communication interfaces, as well as a physical interface of RS485 for Modbus Serial line slave.

This servo drive is IP20 rated and has dimensions of 55mm (width) x 170mm (depth) x 150mm (height), weighing 1.2kg. It is suitable for machine control solutions and is compatible with the Lexium BCH2 Servo Motor (130mm, 3 motor stacks) at 1500W.

The Lexium 28 range offers predetermined combinations to suit the requirements of motion control applications and optimize performance. This servo drive is certified by CE, CSA, and CULus and meets EN/IEC 61800-5-1 standards.
