Schneider Electric
METSEEM4928E

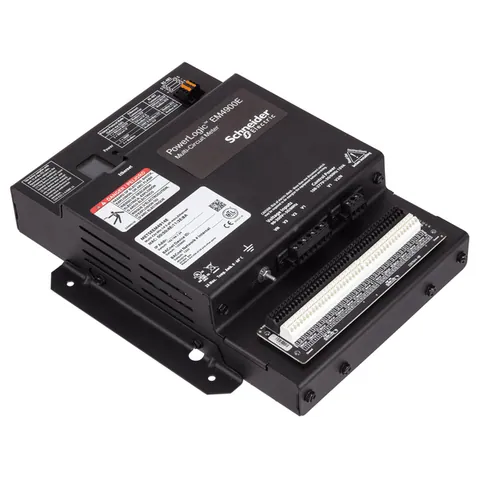

PowerLogic EM4900 Multi-Circuit Meter – 28x3P circuits - Ethernet and Serial
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Invia una richiesta di prezzo
1
Metodi di pagamento:
Additional Information
- Part Number
- METSEEM4928E
- UNSPSC
- 83101808
- Tariff Code
- 9028300000
- Country of Origin
- US
Complementary
- Communication Port Support
- spring connector RS485 || RJ45
- Measurement Voltage
- 150-480 V AC 50/60 Hz between phases || 90-277 V AC 50/60 Hz between phase and neutral
- Sampling Rate
- 256 samples/cycle
- Communication Port Protocol
- Modbus RTU 9600, 19200, 38400 bps even/odd or none - 2 wires || Modbus TCP 9600, 19200, 38400 bps even/odd or none - 2 wires || SNMP || BACnet IP 10, 100 Mbits || BACnet MS/TP
- Communication Service
- updating firmware
- Communication Of Data
- low-low current alarm || total energy || over voltage alarm || high-high current alarm || low current alarm || high current alarm || under voltage alarm
- Measurement Accuracy
- power +/- 0.5 % of the measuring range || energy +/- 0.5 % of the measuring range || current +/- 0.5 % of the measuring range || voltage +/- 0.5 % of the measuring range
- Refresh Time
- 2 s Modbus) || 14 s BACnet) || 20 s SNMP)
- Data Recording
- maximum of demand active power || maximum of instantaneous current || maximum of demand current
- Analogue Input Type
- solid core CT 0.333 V84 x single pole || solid core CT 0.333 V42 x single phase || solid core CT 0.333 V28 x three phase || split core CT 0.333 V84 x single pole || split core CT 0.333 V42 x single phase || split core CT 0.333 V28 x three phase
- Web Services
- web server
Specifications
- Network Frequency
- 50 Hz || 60 Hz
- Type Of Measurement
- current per phase, rms || current average || phase angle || active power total || active power per phase || apparent power total || apparent power per phase || power factor average || power factor per phase || active energy
- Power Monitoring
- basic instrumentation
- Product Or Component Type
- multi-circuit energy meter
- Product Name
- PowerLogic EM4900E
- Range
- PowerLogic
- Energy Management
- billing analysis || sub billing and cost allocation
- [Us] Rated Supply Voltage
- 100...277 V AC 50/60 Hz
- Device Application
- sub billing
- Device Short Name
- EM4928
- Metering Type
- demand current I1, I2, I3, peak demand current IM1, IM2, IM3 || demand power P
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Eu Rohs Directive
- Compliant with Exemptions
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Height
- 70 mm
- Standards
- IEC 61010 || UL 508
- Net Weight
- 1.5 kg
- Pollution Degree
- 2
- Mounting Mode
- wall mount
- Ambient Air Temperature For Storage
- -40-70 °C
- Width
- 253 mm
- Depth
- 307 mm
- Installation Category
- III
