Schneider Electric
NSYDPLA3

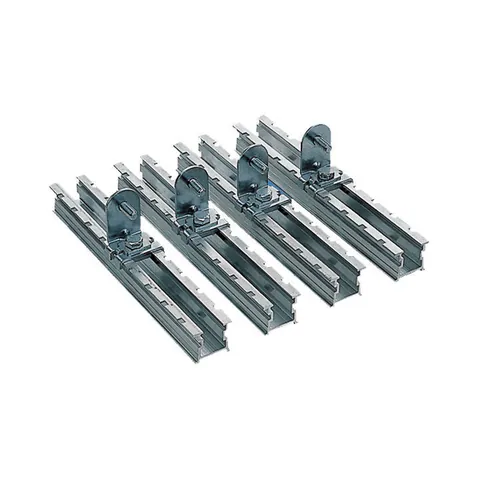

set of 4 step slides with brackets for adjustment of mount. plate in PLA D320mm
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
€42.43
1
Metodi di pagamento:
Un totale di 15 Parts In-Stock da 13 Distributors
Condizioni del prodotto:
Additional Information
- Part Number
- NSYDPLA3
- UNSPSC
- 39121324
- Tariff Code
- 8538908160
- Country of Origin
- ES
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- N/A
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP110921EN
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
Complementary
- Iso Thread
- M8
- Adjustment
- in depth of the plate or other accessories in steps of 12.5 mm
- Depth
- maximum depth adjustment 250 mm || minimun depth adjustment 35 mm
- Fixing Mode
- by fixing element
Contractual warranty
- Warranty
- 18 months
Specifications
- Enclosure Nominal Dimensions
- D: 320 mm
- Range Compatibility
- Thalassa Thalassa PLA || Thalassa Thalassa PHD
- Material
- sliding support steel || sliding rail aluminium
- Accessory / Separate Part Category
- mounting accessory
- Quantity Per Set
- set of 1
- Product Or Component Type
- step slide
- Device Composition
- 4 sliding rails || 4 sliding support with M8 stud || fixing elements
- Device Application
- multi-purpose
- Mounting Location
- sides of enclosure
