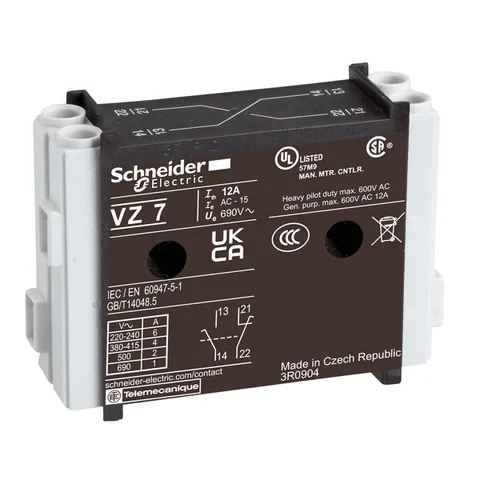

Auxiliary contact block,TeSys Control,1 NC early break+1 NO late make,for V02-V6
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
€9.90
1
Metodi di pagamento:
Un totale di 782 Parts In-Stock da 43 Distributors
Condizioni del prodotto:
Additional Information
- Part Number
- VZ7
- UNSPSC
- 39121522
- Tariff Code
- 8536509025
- Country of Origin
- CZ
Environment
- Product Certifications
- GL || CSA || UL || UKCA
- Ambient Air Temperature For Operation
- -20-50 °C
- Standards
- IEC 60947-5
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Protective Treatment
- TC
- Fire Resistance
- 960 °C IEC 60695-2-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2211001
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- N/A
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free product
Complementary
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Height
- 65 mm
- [Ith] Conventional Free Air Thermal Current
- 12 A
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Net Weight
- 0.05 kg
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Mounting Location
- left || right
- Connections - Terminals
- screw clamp terminals 2 0.75-1.5 mm² flexible - with cable end || screw clamp terminals 2 1-2.5 mm² solid
- Electrical Durability
- 30000 cycles DC-11 || 100000 cycles AC-15
- Mechanical Durability
- 100000 cycles
- Width
- 20 mm
- Tightening Torque
- 0.7-0.7 N.m screw clamp terminals
- Depth
- 48.5 mm
Specifications
- Network Frequency
- 50/60 Hz
- Network Type
- AC || DC
- Product Or Component Type
- auxiliary contact block
- Performance Level
- high performance
- Range
- TeSys
- Contact Operation
- late-make 1 NO || early-break 1 NC
- Contacts Type And Composition
- 1 NO + 1 NC
- Product Compatibility
- V2 || V5 || V02 || V6 || V1 || V4 || V01 || V0 || V3
- Device Short Name
- VZ
