Schneider Electric
ZBE504

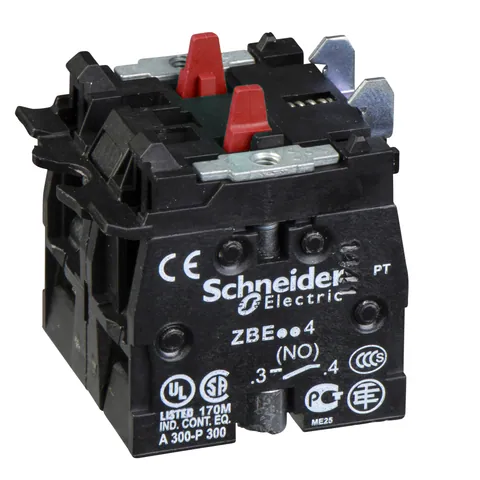

High power switching contacts block, Harmony XB4, silver alloy, screw clamp terminal, 2NC
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Invia una richiesta di prezzo
1
Metodi di pagamento:
Un totale di 21 Parts In-Stock da 11 Distributors
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
€4.55
Additional Information
- Part Number
- ZBE504
- UNSPSC
- 39121522
Specifications
- Contacts Usage
- high power switching contacts
- Range Of Product
- Harmony XB5 || Harmony XB4
- Contact Block Type
- double
- Product Or Component Type
- contact block
- Ip Degree Of Protection
- IP20 IEC 60529
- Connections - Terminals
- screw clamp terminals, <= 1 x 2.5 mm² with cable end || screw clamp terminals, <= 2 x 1.5 mm² with cable end || screw clamp terminals, <= 2 x 2.5 mm² without cable end || screw clamp terminals, >= 1 x 0.5 mm² without cable end
- Sale Per Indivisible Quantity
- 1
- Contact Operation
- slow-break
- Device Short Name
- ZBE
Contractual warranty
- Warranty
- 18 months
Complementary
- Mounting Of Block
- front mounting
- Contacts Type And Composition
- 2 NC
- Short-Circuit Protection
- 10 A cartridge fuse gG EN/IEC 60947-5-1
- Positive Opening
- with
- Electrical Composition Code
- C15 1 )
- [Ith] Conventional Free Air Thermal Current
- 10 A EN/IEC 60947-5-1
- Net Weight
- 0.032 kg
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN 60947-1
- [Ui] Rated Insulation Voltage
- 300 VEN 60947-1
- [Ie] Rated Operational Current
- 1.1 A 125 V, DC-13, P300 EN/IEC 60947-5-1
- Mechanical Durability
- 10000000 cycles
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1808008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
