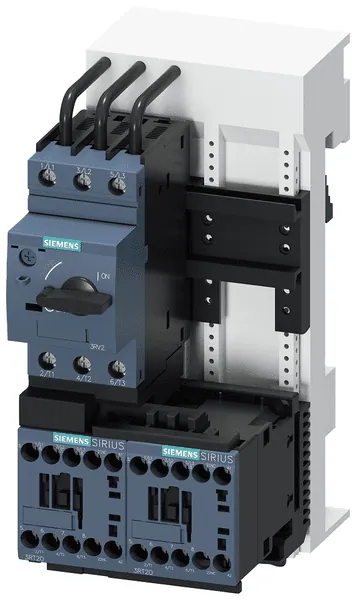

Siemens 3RA2210-0FD15-2AP0

The STARTER REV FB S00 0.35-0.5A 230VAC is designed for use in load feeder applications, specifically for reversing duty under AC 400V conditions. It operates within a current range of 0.35 to 0.5 A at 230 V AC, featuring screw connections tailored for 60 mm busbar systems. This unit adheres to coordination class 2 and has a conditional short-circuit current rating of 150 kA, fulfilling the requirements of type coordination 1 as well.

Constructed with a mechanical service life of approximately 30 million operating cycles, this reversing starter ensures durability and reliability. It is equipped with thermal overload protection and a CLASS 10 trip class, which allows for precise management of motor starting and stopping conditions. The ambient temperature range during operation is from -20 °C to +60 °C, with a storage and transport tolerance from -50 °C to +80 °C, making it suitable for various environments.

Measuring 90 mm in width, 155 mm in depth, and 204 mm in height, the device features a vertical mounting position and is designed for easy integration with existing systems. Overall, this starter is a critical component for controlling motor applications in industrial settings, ensuring effective operation and safety.
