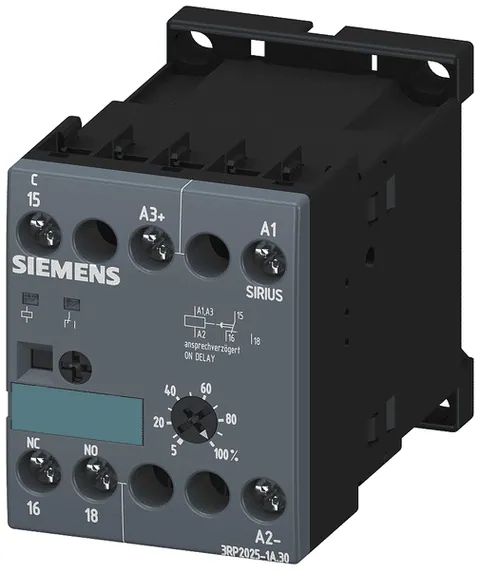

Siemens 3RP2025-1AQ30

The Timing Relay 3RP20 is designed for precise time delay applications, providing a versatile time range from 0.05 seconds to 100 hours. This unit operates at control voltages of 24 V AC/DC and 100 to 127 V AC at 50/60 Hz, making it suitable for various industrial environments.

With a width of 45 mm, it facilitates easy installation on DIN rails using screw mounting methods. The relay's mechanical service life is rated at 10 million operating cycles, ensuring durability and reliability in performance. Additionally, it offers an electrical endurance of 100,000 cycles at AC-15 at 230 V.

The device is equipped with an IP20 protection class, providing basic insulation and ensuring safe operation under specified conditions. It is resistant to environmental factors with an operating temperature range of -25 to +60 °C and can be stored or transported at temperatures between -40 and +85 °C.

Notably, the relay includes features such as screw-type terminals for electrical connections and operates effectively within a maximum installation altitude of 2,000 m. The design adheres to relevant standards, including insulation voltage ratings of 300 V and surge voltage resistance of 4,000 V. The relay also complies with various electromagnetic compatibility standards, ensuring minimal interference in sensitive applications.
