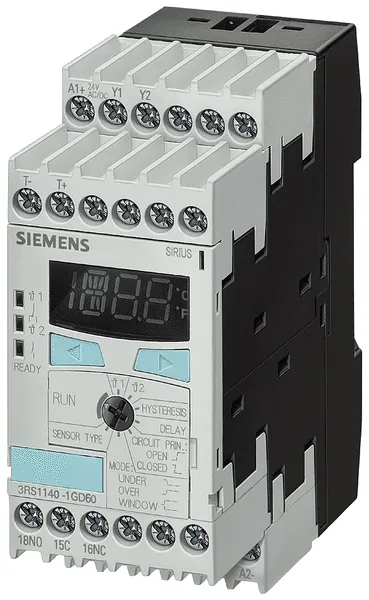

Siemens
3RS1142-1GW80
TEMPERATURE MONITOR RELAY
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Invia una richiesta di prezzo
1
Metodi di pagamento:
Un totale di 3 Parts In-Stock da 9 Distributors
Condizioni del prodotto:
Descrizione
Attivo maturoConforme a RoHS
2 x 1 co + 1 no, width 45 mm, 24 v to 240 V AC/DC, (sensor-dependent), -99 degrees c to 1800 degrees c 2 thresholds, digital, thermocouple j,k,t,e,n,s,r,b, in accordance with din 3440, temperature sensor/limiterSpecifications
- Depth
- 91 mm
- Country of Origin
- DE
- Width
- 45 mm
- Height
- 106 mm
- With detachable clamps
- true
- External reset possible
- true
- Number of measuring circuits
- 1
- Error registration possible
- true
- Voltage type for actuating
- AC/DC
- Rated control supply voltage Us at DC
- 24 V
- Number of contacts as change-over contact
- 2
- Type of electric connection
- Screw connection
- Number of contacts as normally open contact
- 1
- Rated control supply voltage Us at AC 50HZ
- 24 V
- Rated control supply voltage Us at AC 60HZ
- 24 V
- Number of contacts as normally closed contact
- 0
