- Pole number
- 3
- Manner of using
- Toggle
- Protection type IP
- IP20
- Release system
- magnetic
- Sensitive to phase failure
- true
- Connection type
- Screw connection

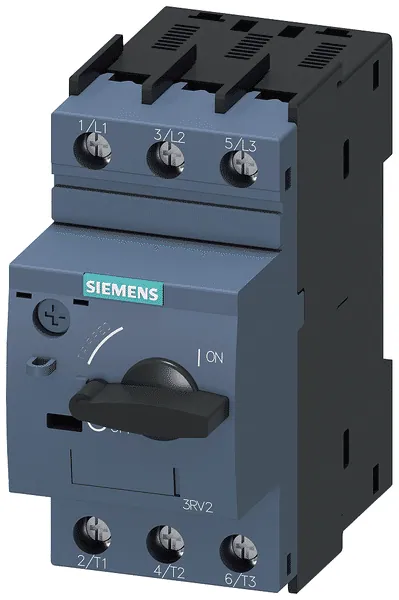

- Description of product type
- 3RV2
- Rated permanent current Iu
- 1 ampere
- Max. rated operating voltage
- 690 volt
- Min. rated operating voltage
- 690 volt
- Number of auxiliary contacts as opener
- 0
- Number of auxiliary contacts as shutter
- 0
- Country of Origin
- DE
- Rated operating power with AC-3, 230 V
- 0 kilowatt
- Rated operating power with AC-3, 400 V
- 0 kilowatt
- Power loss per pole, current-dependent [PlIp]
- 1.8 watt
- Rated current [In] for the power loss specification
- 1 ampere
- Lowest value of setting range for overload tripper
- 0.45 ampere
- Greatest value of overload release adjustment range
- 0.63 ampere
- Rated service short-circuit breaking capacity Ics at 400 V, 50 Hz
- 100000 ampere
