Siemens
3RV2011-0JA20
MSP S00 0.7-1A SPRING
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
€29.28
1
Metodi di pagamento:
Un totale di 235 Parts In-Stock da 37 Distributors
Condizioni del prodotto:
Descrizione
AttivoConforme a RoHS

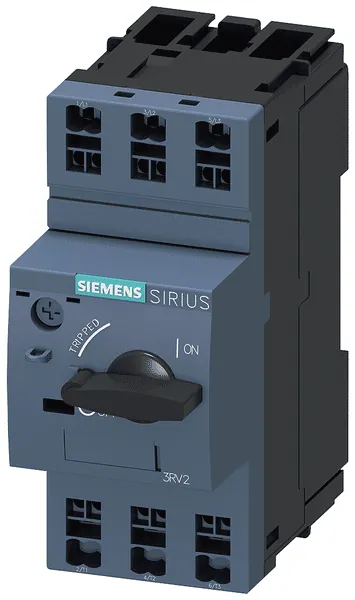

Circuit-breaker sz s00, for motor protection, class 10, a-rel. 0.7...1a, n-release 13a, spring-l. connection standard sw. capacityAdditional Information
- Part Number
- 3RV2011-0JA20
- UPC
- 662643921700
- Tariff Code
- 8536304000
- Country of Origin
- DE
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Motor protection circuit-breaker
- Class Code : EC000074
- Version : 7
Specifications
- Pole number
- 3
- Manner of using
- Toggle
- Protection type IP
- IP20
- Release system
- magnetic
- Sensitive to phase failure
- true
- Description of product type
- 3RV2
- Rated permanent current Iu
- 1 ampere
- Max. rated operating voltage
- 690 volt
- Min. rated operating voltage
- 690 volt
- Country of Origin
- DE
- Connection type
- Spring pulley connection
- Number of auxiliary contacts as opener
- 0
- Number of auxiliary contacts as shutter
- 0
- Rated operating power with AC-3, 230 V
- 0 kilowatt
- Rated operating power with AC-3, 400 V
- 0 kilowatt
- Power loss per pole, current-dependent [PlIp]
- 2.4 watt
- Greatest value of overload release adjustment range
- 1 ampere
- Rated current [In] for the power loss specification
- 1 ampere
- Lowest value of setting range for overload tripper
- 0.7 ampere
- Rated service short-circuit breaking capacity Ics at 400 V, 50 Hz
- 100000 ampere
