Siemens

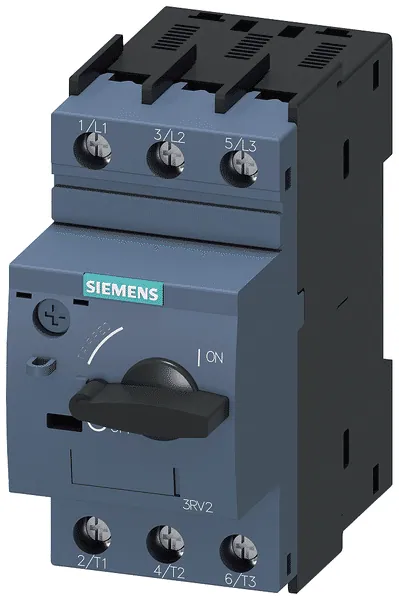

3RV2011-1JA10
CIRCUIT BREAKER S00 7-10A SCREW MSP
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
€28.67
1
Metodi di pagamento:
Un totale di 4.560 Parts In-Stock da 77 Distributors
Condizioni del prodotto:
Descrizione
AttivoConforme a RoHS
Switch_MOTOR 3RV2011-1JA10-3RV2011-1JA10_7...10A_10A_690VAdditional Information
- Part Number
- 3RV2011-1JA10
- UPC
- 662643924121
- Tariff Code
- 8536304000
- Country of Origin
- DE
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Motor protection circuit-breaker
- Class Code : EC000074
- Version : 7
Specifications
- Country of Origin
- DE
- Pole number
- 3
- Manner of using
- Toggle
- Protection type IP
- IP20
- Release system
- magnetic
- Sensitive to phase failure
- true
- Connection type
- Screw connection
- Description of product type
- 3RV2
- Rated permanent current Iu
- 10 ampere
- Max. rated operating voltage
- 690 volt
- Min. rated operating voltage
- 690 volt
- Number of auxiliary contacts as opener
- 0
- Number of auxiliary contacts as shutter
- 0
- Rated operating power with AC-3, 230 V
- 2 kilowatt
- Rated operating power with AC-3, 400 V
- 4 kilowatt
- Power loss per pole, current-dependent [PlIp]
- 3.1 watt
- Lowest value of setting range for overload tripper
- 7 ampere
- Greatest value of overload release adjustment range
- 10 ampere
- Rated current [In] for the power loss specification
- 10 ampere
- Rated service short-circuit breaking capacity Ics at 400 V, 50 Hz
- 100000 ampere
