Siemens

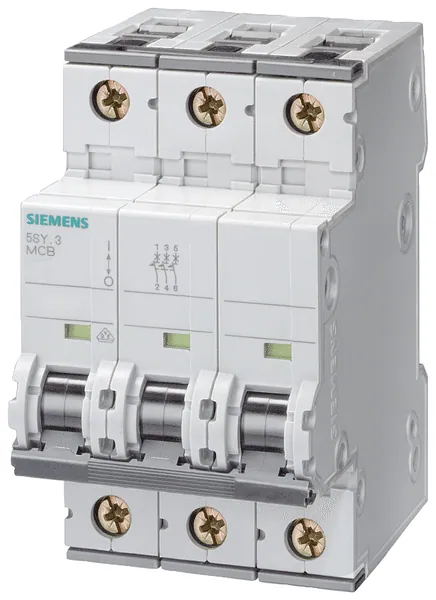

5SY4302-7
SUP PTOR 5SY4 3P 480V 2A 5K C-TRIP
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
$132.04
1
Metodi di pagamento:
Un totale di 152 Parts In-Stock da 35 Distributors
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:1 - 2 Molti giorni lavorativi
Miglior prezzo:
€19.87
Additional Information
- Part Number
- 5SY4302-7
- UPC
- 754554862378
- Tariff Code
- 8536200020
- Country of Origin
- DE
Specifications
- Voltage type
- AC
- Country of Origin
- DE
- Rated current
- 2 A
- Pollution degree
- 3
- Rated voltage
- 400 V
- Built-in depth
- 70 mm
- Over voltage category
- 3
- Current limiting class
- 3
- Release characteristic
- C
- Number of poles (total)
- 3
- Degree of protection (IP)
- IP20
- Rated insulation voltage Ui
- 440 V
- Additional equipment possible
- true
- Width in number of modular spacings
- 3
- Rated impulse withstand voltage Uimp
- 4 kV
- Ambient temperature during operating
- -40 °C
- Connectable conductor cross section solid-core
- 0.75 mm²
- Connectable conductor cross section multi-wired
- 0.75 mm²
- Rated short-circuit breaking capacity Icn EN 60898 at 230 V
- 10 kA
- Rated short-circuit breaking capacity Icn EN 60898 at 400 V
- 10 kA
- Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V
- 35 kA
- Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V
- 35 kA
