6AV2124-0QC02-0AX1
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Descrizione
Additional Information
- Part Number
- 6AV2124-0QC02-0AX1
- UPC
- 804766523915
- Tariff Code
- 8537109170
- Country of Origin
- DE
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : Graphic panel
- Class Code : EC001412
- Version : 7
Specifications
- Country of Origin
- DE
- With recipes
- true
- Built-in depth
- 75 mm
- Type of display
- TFT
- Supply voltage DC
- 19.2 V
- Screen diagonal
- 15.4 inch
- Width of the front
- 415 mm
- With colour display
- true
- With printer output
- true
- Height of the front
- 310 mm
- Number of system buttons
- 0
- With numeric keyboard
- true
- Number of buttons with LED
- 0
- Number of password levels
- 50
- With message indication
- true
- Number of HW-interfaces USB
- 2
- Number of online languages
- 32
- Number of pixels, vertical
- 800
- Operation temperature
- 0 °C
- Number of HW-interfaces other
- 0
- Number of interfaces PROFINET
- 2
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 1
- With alpha numeric keyboard
- true
- Number of pixels, horizontal
- 1280
- Voltage type of supply voltage
- DC
- Number of HW-interfaces Wireless
- 0
- Number of HW-interfaces parallel
- 0
- Supporting protocol for MODBUS
- true
- Supporting protocol for TCP/IP
- true
- Number of HW-interfaces serial TTY
- 0
- Supporting protocol for PROFIBUS
- true
- Supporting protocol for EtherNet/IP
- true
- Supporting protocol for PROFINET IO
- true
- Number of colours of the display
- 16777216
- Degree of protection (IP), front side
- IP65
- Number of function buttons, programmable
- 0
- Process default value (input) possible
- true
- Useful project memory/user memory
- 24000 kByte
- Additional software components, loadable
- true
- Number of HW-interfaces industrial Ethernet
- 2
- Number of grey-scales/blue-scales of display
- 0
- Supporting protocol for other bus systems
- true
- Process value representation (output) possible
- true
- With message system (incl. buffer and confirmation)
- true
Prodotti correlati
Informazioni aggiuntive

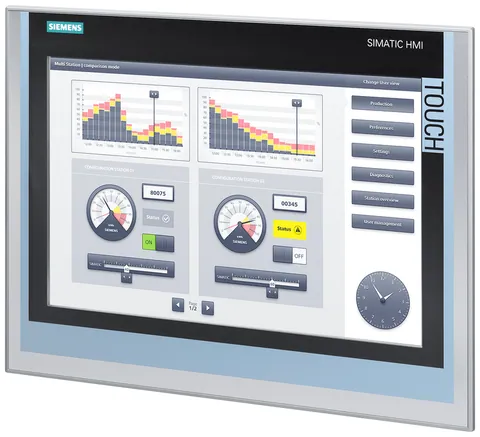

The Siemens 6AV21240QC020AX1 is a high-performance industrial automation component for a wide range of applications. This part is part of the SIMATIC HMI range and is designed to provide reliable and efficient control in a wide range of industrial automation processes.
The 6AV21240QC020AX1 is a 12.1-inch touchscreen panel that is designed for easy control and visualization for both simple and complex applications. This device features an intuitive user interface and high-resolution graphics capabilities. It also has a multi-touch screen, which allows for easy and accurate control of applications.
The 6AV21240QC020AX1 comes with a variety of features to help optimize the performance of industrial automation processes. It has an integrated Ethernet port, which supports communication with other devices on the network. It also has a USB port, which allows for easy connection to other devices. Additionally, it has an integrated web server, allowing for remote access and control of the device. This part also has an optional SD card slot, allowing for storage of data and programs.
