Siemens
6EP4347-7RB00-0AX0
SITOP RED1200 REDUNDANCY MODULE 2 20A
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
£90.65
1
Metodi di pagamento:
Un totale di 301 Parts In-Stock da 25 Distributors
Condizioni del prodotto:
Descrizione
AttivoConforme a RoHS

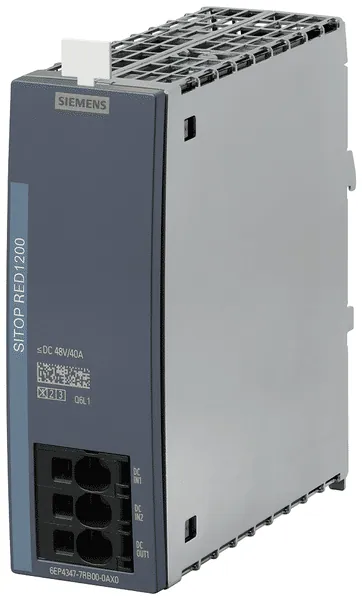

SITOP RED1200 redundancy module Input/output: 48 V DC / 40 A suitable for decoupling two SITOP power supplies with maximal per 20 A output currentAdditional Information
- Part Number
- 6EP4347-7RB00-0AX0
- UPC
- 804766899232
- Tariff Code
- 8504409510
- Country of Origin
- AT
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : DC-power supply
- Class Code : EC002540
- Version : 7
Specifications
- Width
- 45 millimetre
- Depth
- 125 millimetre
- Height
- 135 millimetre
- Net weight
- 1 kilogram
- Supply voltage type
- DC
- Protection type IP
- IP20
- Product name
- RED1200 2x20A
- Max. 1. output voltage
- 56 volt
- Min. 1. output voltage
- 24 volt
- Installation width
- 45 millimetre
- Power consumption
- 25 volt ampere
- Installation height
- 225 millimetre
- Bearing track assembly possible
- true
- Suitable for series installation
- true
- Nominal value 1. output voltage
- 24 volt
- Nominal value output current 1
- 40 ampere
- Max. rated supply voltage with DC
- 48 volt
- Min. rated supply voltage with DC
- 24 volt
- Description of product type
- Redundancy module
- Power loss, static, current-independent [Pls]
- 25 watt
- Country of Origin
- AT
