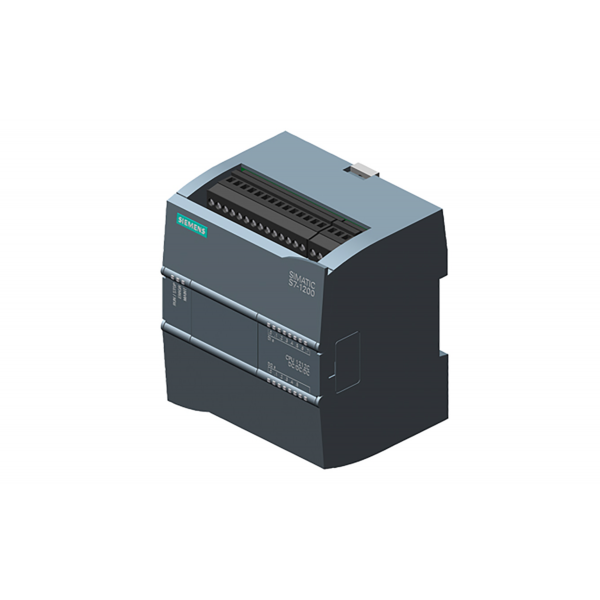

6ES7212-1AE40-0XB0
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Descrizione
Additional Information
- Part Number
- 6ES7212-1AE40-0XB0
- UPC
- 887621769024
- Tariff Code
- 8537109160
- Country of Origin
- CN
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : PLC CPU-module
- Class Code : EC000236
- Version : 7
Specifications
- Brand
- SIMATIC
- Design
- compact
- Depth
- 75 millimetre
- Width
- 90 millimetre
- Height
- 100 millimetre
- Design of storage
- RAM
- Supply voltage type
- DC
- Web-server present
- true
- Manufacturer name
- Siemens
- Number of analog inputs
- 2
- Number of analog outputs
- 0
- Number of inputs, digital
- 8
- Number of outputs, digital
- 6
- System components present
- true
- Number of HW interfaces, other
- 0
- Number of HW interfaces PROFINET
- 1
- Number of HW interfaces Wireless
- 0
- Number of HW interfaces parallel
- 0
- Min. supply voltage with DC
- 20 volt
- Manufacturer product family
- S7-1200
- Bearing track assembly possible
- true
- Number of HW interfaces serial TTY
- 0
- Max. supply voltage with DC
- 28.8 volt
- Required storage capacity
- 75 kilobyte
- Number of HW interfaces serial RS232
- 0
- Number of HW interfaces serial RS422
- 0
- Number of HW interfaces serial RS485
- 0
- Max. number of relay outputs, integrated
- 0
- Wall mounting/direct mounting possible
- true
- Number of HW interfaces Industrial Ethernet
- 1
- Description of product type
- CPU 1212C DC/DC/DC
- Manufacturer product root
- Central processing unit
- Power loss, static, current-independent [Pls]
- 9 watt
- Operating time (1K, binary instruction)
- 0 millisecond
- Country of Origin
- CN
Prodotti correlati
Informazioni aggiuntive
The 6ES72121AE400XB0 is a product from Siemens’ industrial automation range. It is a product designed to help optimize and streamline the performance of industrial processes. This product is capable of providing reliable, consistent and efficient operation in industrial environments with a wide range of applications.
This product is a SIMATIC S7-1200 PLC with an embedded motherboard. It includes an Intel Atom E3845 processor and 4 MB of integrated memory. It also offers a range of features, including a real-time clock, 32 digital inputs and 16 digital outputs, a USB port, Ethernet interface, and a range of other features.
The 6ES72121AE400XB0 is a highly reliable product that is ideal for use in a wide range of industrial automation applications. It is a robust and reliable product that provides an efficient and reliable operation for industrial processes. It is a dependable product that is designed to be able to handle a wide range of industrial applications with ease.
