Siemens

6ES7511-1CK01-0AB0

1 / 1
thumbnail

Descrizione

AttivoConforme a RoHS

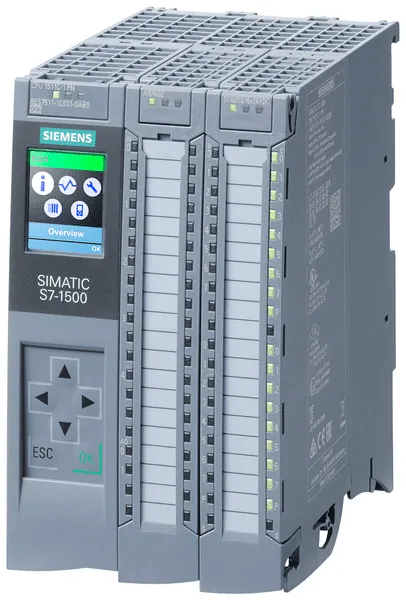

SIMATIC s7-1500 compact cpu cpu 1511c-1pn. central processing unit with working memory 175 kb for program and 1 mb for data. 16 digital inputs. 16 digital outputs. 5 analog inputs. 2 analog outputs. 6 high speed counters. 4 high speed outputs for pto/pwm/frequency output 1. interface PROFINET irt with 2 port switch. 60 ns bit-performance. incl. front connector push-in. SIMATIC memory card necessary
Country of Origin
CN
Part Number
6ES7511-1CK01-0AB0
Tariff Code
85371091
EAN
4047623409168
UPC
804766684159
ETIM
Group Code : EG000024
Group Description : PLC's
Class Description : PLC CPU-module
Class Code : EC000236
Version : 7
€1,950.40
net
Spedizione da:
€45.00
1
Metodi di pagamento:
Migliore offerta da:
ITFornitore Automa.Net di fiducia
Disponibilità:
31 pz.
Disponibile
Aggiornato il: 22-11-2024
Garanzia:
12 mesi
Consegna stimata:
27 novembre - 02 dicembre a Regno Unito
Condizione:
Nuovo sigillato in fabbrica
Nuovo sigillato in fabbrica - Un articolo nuovo di zecca, inutilizzato, non aperto, non danneggiato, nella sua confezione originale sigillata dal produttore.
Un totale di 32 Parts In-Stock da 2 Distributors
Informazioni sulla spedizione
Processo di Pagamento Sicuro
Politiche di Reso e Rimborso
Politiche di Spedizione
Politiche di Garanzia

Offerte Disponibili (1)

6ES7511-1CK01-0AB0 product image
Siemens

6ES7511-1CK01-0AB0

Condizione:
Nuove eccedenze
Disponibile:
1 pz.
Disponibile
Aggiornato il: 22-11-2024
Offerta da:
GBFornitore Automa.Net di fiducia
Consegna stimata:
25-26 novembre a Regno Unito
Garanzia:
6 mesi
1
£1,125.00
£1,012.50
net
Spedizione da:
£35.00

Specifications

Brand
SIMATIC
Design
compact
Width
85 millimetre
Depth
129 millimetre
Display present
true
Height
147 millimetre
Supply voltage type
DC
Manufacturer name
Siemens
Number of analog inputs
5
Number of analog outputs
2
Number of inputs, digital
16
Number of outputs, digital
16
System components present
true
Number of HW interfaces, other
0
Number of HW interfaces PROFINET
1
Number of HW interfaces Wireless
0
Number of HW interfaces parallel
0
Min. supply voltage with DC
19 volt
Manufacturer product family
S7-1500
Bearing track assembly possible
true
Number of HW interfaces serial TTY
0
Max. supply voltage with DC
28.8 volt
Number of HW interfaces serial RS232
0
Number of HW interfaces serial RS422
0
Number of HW interfaces serial RS485
0
Required storage capacity
1175 kilobyte
Description of product type
CPU 1511C-1 PN
Max. number of relay outputs, integrated
0
Number of HW interfaces Industrial Ethernet
1
Manufacturer product root
Central processing unit
Operating time (1K, binary instruction)
0 millisecond
Power loss, static, current-independent [Pls]
12 watt
Country of Origin
CN
