6ES7516-3AN02-0AB0
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Descrizione
Additional Information
- Part Number
- 6ES7516-3AN02-0AB0
- UPC
- 195125034488
- Tariff Code
- 8537109170
- Country of Origin
- DE
Specifications
- Country of Origin
- DE
- Width
- 70 mm
- Depth
- 129 mm
- Height
- 147 mm
- Model
- Modular
- With display
- true
- Type of memory
- Other
- Memory size
- 6000 kByte
- System accessory
- true
- Supply voltage DC
- 19.2 V
- Number of relay outputs
- 0
- Number of digital inputs
- 0
- Number of analogue inputs
- 0
- Number of digital outputs
- 0
- Rail mounting possible
- true
- Number of analogue outputs
- 0
- Number of HW-interfaces USB
- 0
- Number of HW-interfaces other
- 0
- Number of interfaces PROFINET
- 2
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 1
- Voltage type of supply voltage
- DC
- Number of HW-interfaces Wireless
- 0
- Number of HW-interfaces parallel
- 0
- Supporting protocol for MODBUS
- true
- Supporting protocol for TCP/IP
- true
- Supporting protocol for PROFIBUS
- true
- Explosion safety category for dust
- None
- Supporting protocol for PROFINET IO
- true
- Number of HW-interfaces industrial Ethernet
- 2
- Processing time (1K, binary operation)
- 0.01 ms
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
Prodotti correlati
Informazioni aggiuntive

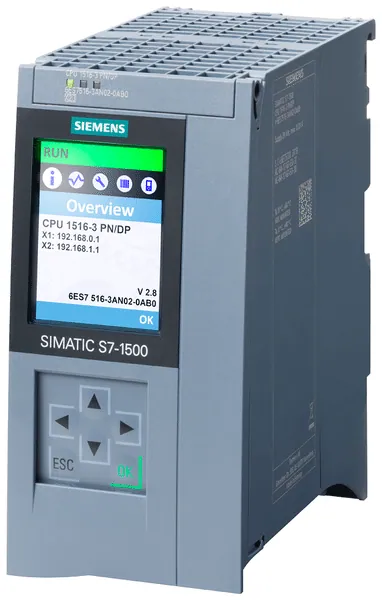

The 6ES75163AN020AB0 is a Siemens Simatic S7-1500 CPU 1516-3 PN/DP controller from the industrial automation market. This controller features a 1516-3 PN/DP processor, 16 MB user memory, and 128 KB work memory. It is designed to meet the needs of demanding industrial automation applications and is well-suited for use in distributed systems with a wide range of communication requirements. The 6ES75163AN020AB0 features a high-performance processor and a range of integrated communication interfaces, such as Ethernet, Profinet, and Profisafe. It also offers advanced safety functions such as Hot Standby redundancy, fail-safe behavior, and safety-related diagnostics. The controller also includes an integrated real-time clock and an integrated system power supply.
The 6ES75163AN020AB0 is equipped with a comprehensive range of technology functions, such as high-speed counters, position measuring systems, and technology-specific functions. It also includes a range of integrated visualization and diagnostics functions, such as a web server and remote access capabilities. Additionally, it supports an array of protocol and communication options, such as OPC UA, S7 protocol, and Modbus. The controller also supports a range of programming languages, such as Ladder, Function Block Diagram, and Structured Text.
The 6ES75163AN020AB0 is designed for use in a variety of industrial applications, such as machine building, process control, and energy management. It is a reliable and cost-effective solution for applications that require high levels of performance, flexibility, and scalability. With its integrated safety functions and comprehensive range of technology and communication options, it is an ideal choice for industrial automation applications.
