Siemens
6GK7343-1CX10-0XE0

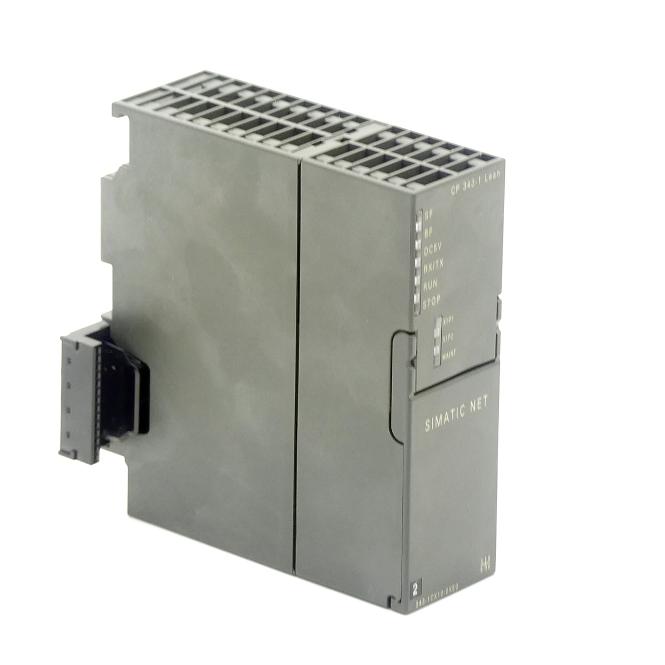

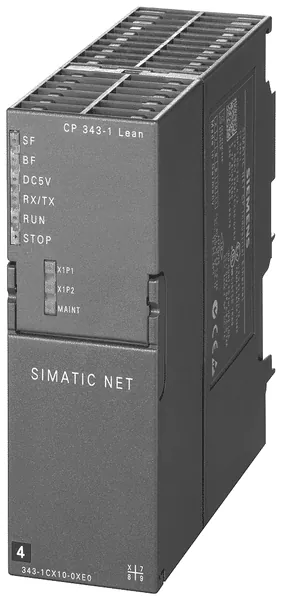

SIMATIC NET, CP 343-1 LEAN
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
£979.00
1
Metodi di pagamento:
Un totale di 580 Parts In-Stock da 77 Distributors
Condizioni del prodotto:
Descrizione
AttivoConforme a RoHS
SIMATIC NET, CP 343-1 LEAN COMMUNICATION PROCESSOR FOR CONNECTING SIMATIC S7-300 TO IND. ETHERNET VIA TCP/IP AND UDP, MULTICAST, SEND/RECEIVE W. AND W/O RFC1006, FETCH/ WRITE, S7-COMMUNICATION(SERVER) PROFINET IO-DEVICE INTEGRATED 2-PORT SWITCH ERTEC 200, BG EXCHANGE W/O PG, SNMP DIAGNOSTICS, INITIALIZ. VIA LAN, 2 X RJ45 CONNECT. FOR LAN WITH 10/100 MBIT/SAdditional Information
- Part Number
- 6GK7343-1CX10-0XE0
- UPC
- 662643193862
- Tariff Code
- 8517620090
- Country of Origin
- DE
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : PLC communication module
- Class Code : EC001423
- Version : 7
Specifications
- Width
- 40 mm
- Depth
- 120 mm
- Height
- 125 mm
- Country of Origin
- DE
- Number of HW-interfaces USB
- 0
- Number of HW-interfaces other
- 0
- Number of interfaces PROFINET
- 2
- SIL according to IEC 61508
- None
- Type of data transmission
- Other
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 0
- Transmission rate
- 100000000 kBit/s
- Number of HW-interfaces Wireless
- 0
- Number of HW-interfaces parallel
- 0
- Supporting protocol for TCP/IP
- true
- Number of HW-interfaces serial TTY
- 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Supporting protocol for PROFINET IO
- true
- Performance level acc. EN ISO 13849-1
- None
- Number of HW-interfaces industrial Ethernet
- 2
- Supporting protocol for other bus systems
- true
