Siemens
6SL3210-1KE11-8UB1

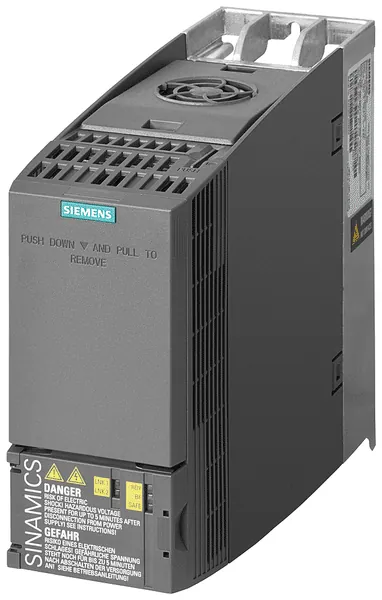

SINAMICS G120C USS/MB 0, 55KW UNFIL
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
€393.59
1
Metodi di pagamento:
Un totale di 19 Parts In-Stock da 18 Distributors
Condizioni del prodotto:
Additional Information
- Part Number
- 6SL3210-1KE11-8UB1
- UPC
- 887621142247
- Tariff Code
- 8504409540
- Country of Origin
- GB
Specifications
- Country of Origin
- GB
- Width
- 73 mm
- Depth
- 203 mm
- Height
- 196 mm
- Mains voltage
- 380 V
- With PC connection
- true
- Max. output voltage
- 480 V
- Number of phases input
- 3
- Number of phases output
- 3
- Number of digital inputs
- 6
- Max. output frequency
- 550 Hz
- Number of analogue inputs
- 1
- Number of digital outputs
- 2
- Number of analogue outputs
- 1
- Number of HW-interfaces USB
- 1
- Type of converter
- U converter
- Degree of protection (IP)
- IP20
- Nominal output current I2N
- 1.8 A
- Number of HW-interfaces other
- 6
- Number of interfaces PROFINET
- 0
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces parallel
- 0
- Integrated breaking resistance
- true
- Supporting protocol for MODBUS
- true
- Number of HW-interfaces serial TTY
- 1
- Number of HW-interfaces industrial Ethernet
- 0
- Relative symmetric net frequency tolerance
- 5 %
- Relative symmetric net voltage tolerance
- -20 %
- Supporting protocol for other bus systems
- true
- Max. output at linear load at rated output voltage
- 0.37 kW
- Application in domestic- and commercial area permitted
- true
- Max. output at quadratic load at rated output voltage
- 0.55 kW
