Siemens
6SL3210-1KE21-7AB1

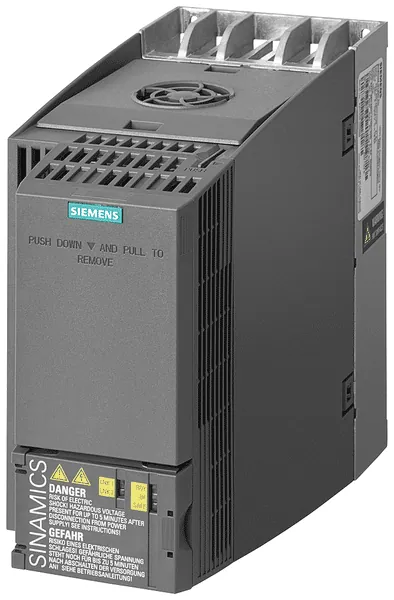

SINAMICS G120C 10HP LO Filtered USS/MB
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
£506.01
1
Metodi di pagamento:
Un totale di 48 Parts In-Stock da 32 Distributors
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
€647.92
Descrizione
AttivoConforme a RoHS
SINAMICS g120c rated power 7,5KW with 150% overload for 3 sec 3AC380-480v +10/-20% 47-63HZ integrated filter class a i/o-interface 6di, 2do,1ai,1ao safe torque off integrated fieldbus uss/ modbus rtu protection IP20/ ul open type size fsb 196x100x203(hxwxd) external 24vAdditional Information
- Part Number
- 6SL3210-1KE21-7AB1
- UPC
- 887621207427
- Tariff Code
- 8504409540
- Country of Origin
- GB
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Frequency converter =< 1 kV
- Class Code : EC001857
- Version : 7
Specifications
- Country of Origin
- GB
- Depth
- 203 mm
- Width
- 100 mm
- Height
- 196 mm
- Mains voltage
- 380 V
- With PC connection
- true
- Max. output voltage
- 480 V
- Number of phases input
- 3
- Number of phases output
- 3
- Number of digital inputs
- 6
- Max. output frequency
- 550 Hz
- Number of analogue inputs
- 1
- Number of digital outputs
- 2
- Number of analogue outputs
- 1
- Number of HW-interfaces USB
- 1
- Type of converter
- U converter
- Degree of protection (IP)
- IP20
- Nominal output current I2N
- 17 A
- Number of HW-interfaces other
- 6
- Number of interfaces PROFINET
- 0
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces parallel
- 0
- Integrated breaking resistance
- true
- Supporting protocol for MODBUS
- true
- Number of HW-interfaces serial TTY
- 1
- Application in industrial area permitted
- true
- Number of HW-interfaces industrial Ethernet
- 0
- Relative symmetric net frequency tolerance
- 5 %
- Relative symmetric net voltage tolerance
- -20 %
- Supporting protocol for other bus systems
- true
- Max. output at linear load at rated output voltage
- 5.5 kW
- Application in domestic- and commercial area permitted
- true
- Max. output at quadratic load at rated output voltage
- 7.5 kW
