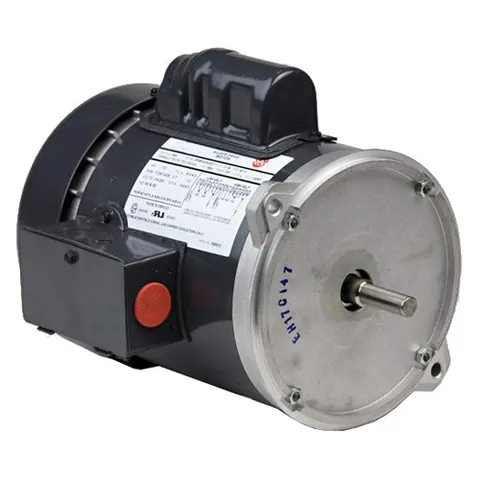

US Motors
FD1CM2PZY
1 HP,1725 RPM,FD1CM2PZY,115/208-230 V,60,56Y
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Invia una richiesta di prezzo
1
Metodi di pagamento:
Additional Information
- Part Number
- FD1CM2PZY
- UPC
- 786382102326
Specifications
- Amps @ Voltage
- 12.8/6.5-6.4
- Base RPM
- 1725 RPM
- Bearing Type
- 6203,6203
- Capacitor
- 594,0
- Country of Origin
- Mexico
- Duty / Condition Type
- CONT
- Enclosure Type
- TEFC
- Frame Size
- 56Y
- Frequency Rating
- 60 Hz
- Full Load Amps
- 12.8/6.5-6.4
- Full Load Current
- 12.8/6.5-6.4 A
- Full Load Torque
- 48.68
- Harmonization Code
- 8501.40.6040
- HP
- 1 HP
- Insulation Class
- F
- KW
- 0.746 kW
- Model
- C063GJL1192015B
- Model Number
- C063GJL1192015B
- Motor Phase
- 1 ph
- Motor Poles
- 4 P
- Mounting Type
- RIGID
- NEMA / IEC Frame Size
- 56Y
- NEMA Design Class
- N
- Overall Length (C-Dimension)
- 12.9
- Service Factor
- 1
- Standards Met
- EE
- Supply Voltage
- 115/208-230 V
- Synchronous RPM
- 1800 rpm
- Thermal Protection
- MANUAL RESET
- Volts @ Frequency
- 115/208-230 V & 60
- Weight
- 36.04 LB
