Weidmuller 1200180000

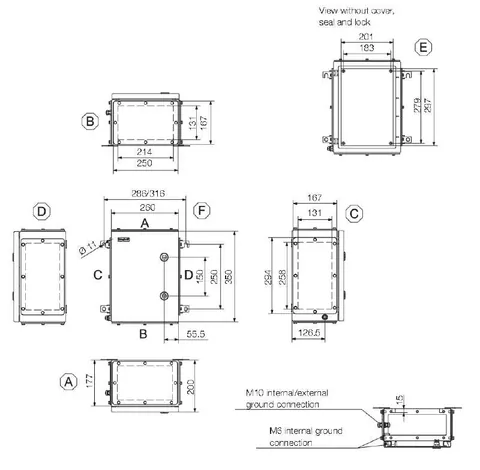

The Klippon TB QL (Terminal Box - Quarter Lock) features an empty enclosure constructed from stainless steel 1.4404 (316L) with an electropolished surface finish. It measures 350 mm in height, 260 mm in width, and 200 mm in depth, making it suitable for various industrial applications, including those in explosive risk zones and the oil and gas industry. The enclosure's environmental compliance includes multiple approvals such as CE, UL, and ATEX, ensuring it meets rigorous industry standards.

Its design includes a bottom and top gland plate, accommodating various cable glands: M12 up to M75, providing flexibility for different installations. The internal configuration supports horizontal and vertical assembly options for terminal blocks, significantly enhancing its adaptability to specific setups. The enclosure includes a welded-on M6 stainless-steel earth stud, ensuring reliable grounding.

With a protection degree of IP66, this enclosure can withstand harsh environmental conditions, making it ideal for offshore and onshore applications. It can operate within a temperature range of -60 °C to 135 °C, with a maximum payload capacity of 36 kg. Additionally, the enclosure features an opening angle of 130° for easy access and maintenance.

For specific applications, customer-specific testing may be required to ensure compliance. The enclosure also complies with standards such as DIN EN 62208 and IEC 60079 series, further solidifying its suitability for demanding environments.
