Weidmuller 1840450000

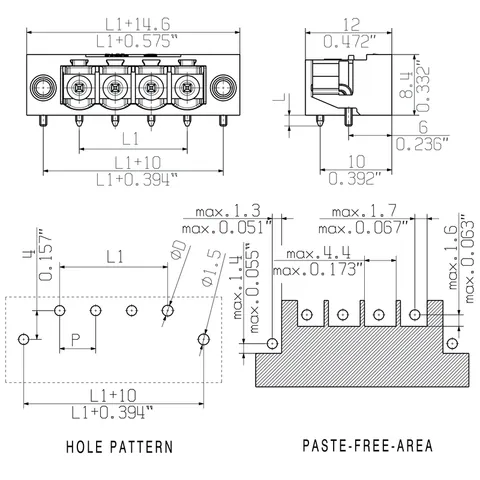

This PCB plug-in connector features a male header design with a 5.00 mm pitch and accommodates 12 poles at a 90° angle. The solder pin length measures 3.2 mm and is constructed with tinned surfaces. The component is packaged in a box for secure storage.

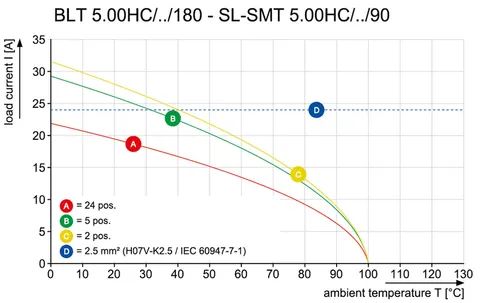

Rated for a maximum voltage of 300 V and current up to 18.5 A in certain configurations, this connector meets various international standards including IEC 60664-1 and IEC 61984. The operating temperature range extends from -50 °C to 100 °C, making it suitable for diverse applications.

Constructed from LCP GF insulating material in black, the connector exhibits a Comparative Tracking Index (CTI) of ≥ 175 and an insulation strength of ≥ 108 Ω. The connector is designed for THT/THR solder connections, with specifications that allow for a reliable performance in industrial environments. The solder pin dimensions include an octagonal shape with a diameter of 1.2 mm and a maximum plugging force of 7 N per pole.

This component is part of the OMNIMATE Signal series, classified under EClass 9.1 as 27-44-04-02. It fulfills the requirements for compliance with ROHS and has received approvals from CSA, EAC, and UR.
