Weidmuller 2492220000

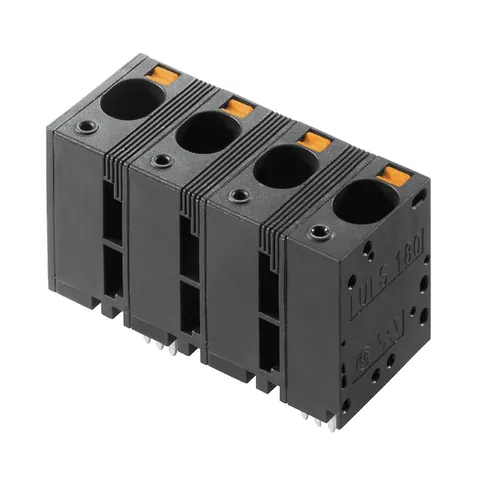

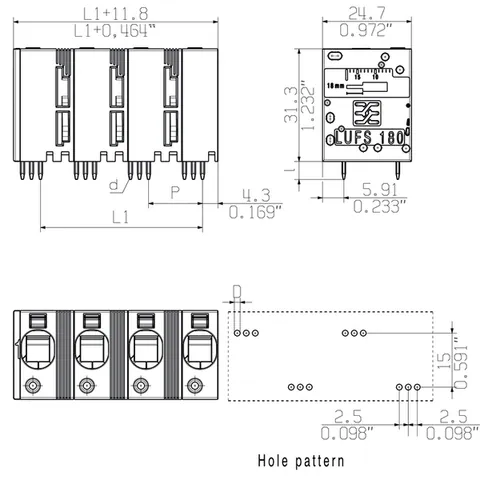

The printed circuit board terminal is designed for efficient connectivity with a pitch of 15.00 mm and a 180° conductor outlet. With a maximum clamping range of 16 mm², it accommodates various wire types, including solid, stranded, and flexible conductors up to AWG 4. The solder pin length measures 5 mm, supporting a robust THT solder connection.

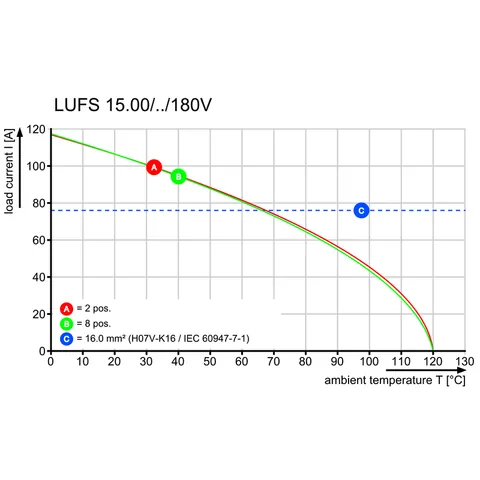

Rated for a voltage of up to 1,000 V and a current capacity of 57 A for certain applications, this terminal meets the requirements set forth by UL 1059 and CSA standards. It is suitable for operating temperatures ranging from -40 °C to 120 °C and has a storage temperature range of -25 °C to 55 °C.

Manufactured with Wemid (PA) as the insulating material, it is black in color and features operational elements made from PA4T GF. The terminal achieves a Comparative Tracking Index (CTI) of ≥ 600 and has an insulation strength of ≥ 108 Ω, ensuring reliable performance in various environments. The product is packaged in a box for secure storage and transport.
