Minarik Drives

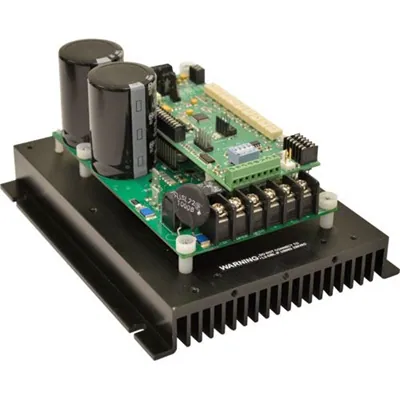

MDVF05-D230-PCM
MDV Series MDVF05-D230-PCM MDVF Series
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Wyślij zapytanie o cenę
1
Metody płatności:
Additional Information
- Part Number
- MDVF05-D230-PCM
Features
- Acceleration
- Deceleration
- Control a variety of motors
- 3-phase induction motors, single-phase permanent split capacitor (PSC), shaded pole, and synchronous motors.
- Quadrature encoder option
- For OEM applications, the drive can be programmed to follow quadrature encoder feedback without any circuitry changes.
- Microprocessor based
- Allows custom programming for OEM’s.
- Doubler mode
- Can double a 115 VAC line to run a 230 VAC motor.
- Diagnostic LED
- LEDs for power and status (undervoltage, overvoltage, short circuit/current trip, overheating warning/trip).
- Minimum Speed
- Maximum Speed
- Dump circuitry
- Internal circuitry for the hookup of an external dump resistor.
- Slip Compensation
- Brake Current
- Torque
- Voltage Boost
- Isolated inputs
- Accepts floating or grounded signals 0 ± 5 VDC, 0 ± 10 VDC or 4-20 mA.
- UL 61800-5-1 Listed
- Tested to the new UL standard to be implemented in 2020.
- Stopping modes
- User can use DC Injection braking, decelerate, or coast the motor to a stop.
- Thermally protects
- Drive recognizes when overheated as a result of overload. It first flashes a warning code on the status LED and will eventually trip if the condition persists.
Specifications
- Enclosure
- Chassis
- Input Voltage
- 115 / 230 VAC
- Output Voltage
- 115 or 230 VAC
- Continuous Current
- 5 Amps
- Braking Type
- DC Injection
- Reversing Type
- Yes
- Isolation
- -5 to 5 VDC, -10 to 10 VDC, 4-20 mA
