Minarik Drives
DC240-36/48-4Q
1 / 1
Opis

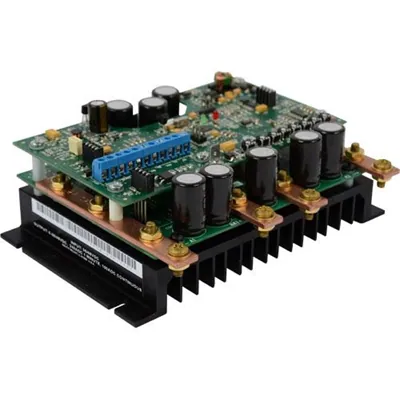

The DC-4Q series of drives are DC in/DC out PWM chassis drives capable of four quadrant reversing and braking. This series of drives is ideal for portable battery powered equipment. The DC-4Q has the ability to maintain variable speed even as battery decreases and has a sleep mode for extended battery life while not in use. The four quadrant capability allows simple connections for fast reversing and/or braking without the need for bulky contactors or braking resistors. The 1.01 form factor produces clean DC output for efficient and quiet motor operation. Like all Minarik Drives products, these units are built in the USA. The DC-4Q series of drives have adjustments for IR Compensation, Motoring Current Limit, Regenerative Current Limit, Forward Max Speed, Reverse Max Speed, Min Speed, Deceleration and Acceleration Time. These drives are microprocessor based meaning these ranges can be reprogrammed to meet any custom needs. The DC-4Q series also has Power and Fault LEDs, including current limit, under voltage, overheat and short circuit. The DC-4Q is available in two models, one for 12-24V systems, the other is designed for 36-48V systems. For simplicity and safety, no jumpers or switches are required for selecting voltages.- Part Number
- DC240-36/48-4Q
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Wyślij zapytanie o cenę
1
Metody płatności:
Features
- Fan Accessory
- Optional field install-able fan kit increases continuous current rating at 160 Amps.
- Four Quadrant Control
- Simple reversing and braking via a switch closure to the drive.
- On Board Calibration
- Calibrate using on board non-interactive trimmer pots, no programming or additional accessories are needed.
- Precharge Circuit
- Optional contactor can be used to provide soft starts and protection against runaway.
- LED Outputs
- Power, Current Limit, Under Voltage, Over Voltage, Overheat and Short Circuit.
- Short Circuit Protection
- Unit protects itself against a shorted motor.
- 1.01 Form Factor
- Clean DC output for efficient and quiet motor operation at a 16 kHz PWM frequency.
- Temperature Sensor
- Current limit automatically reduced if controller heats up.
- Output 100% of DC Input
- Compared to 90% output of similar units on the market.
- Sleep Mode
- Extended battery life.
- High Continuous Current
- Up to 120 Amps continuous, robust bus bars used to handle the current.
- Inhibit Circuit
- Convenient for remote starting and stopping.
- Max One Min. Peak Current
- 240 Amps.
Specifications
- Technology Type
- PWM
- Input Voltage
- 36 / 48 VDC
- Output Voltage
- 0 - 36 / 0 - 48 VDC
- Continuous Current
- 100 Amps
- Peak Current
- 240 Amps (1 Minute)
- Enclosure
- Chassis
- Braking Type
- Regenerative
- Reversing Type
- Regenerative
- Isolation
- None
