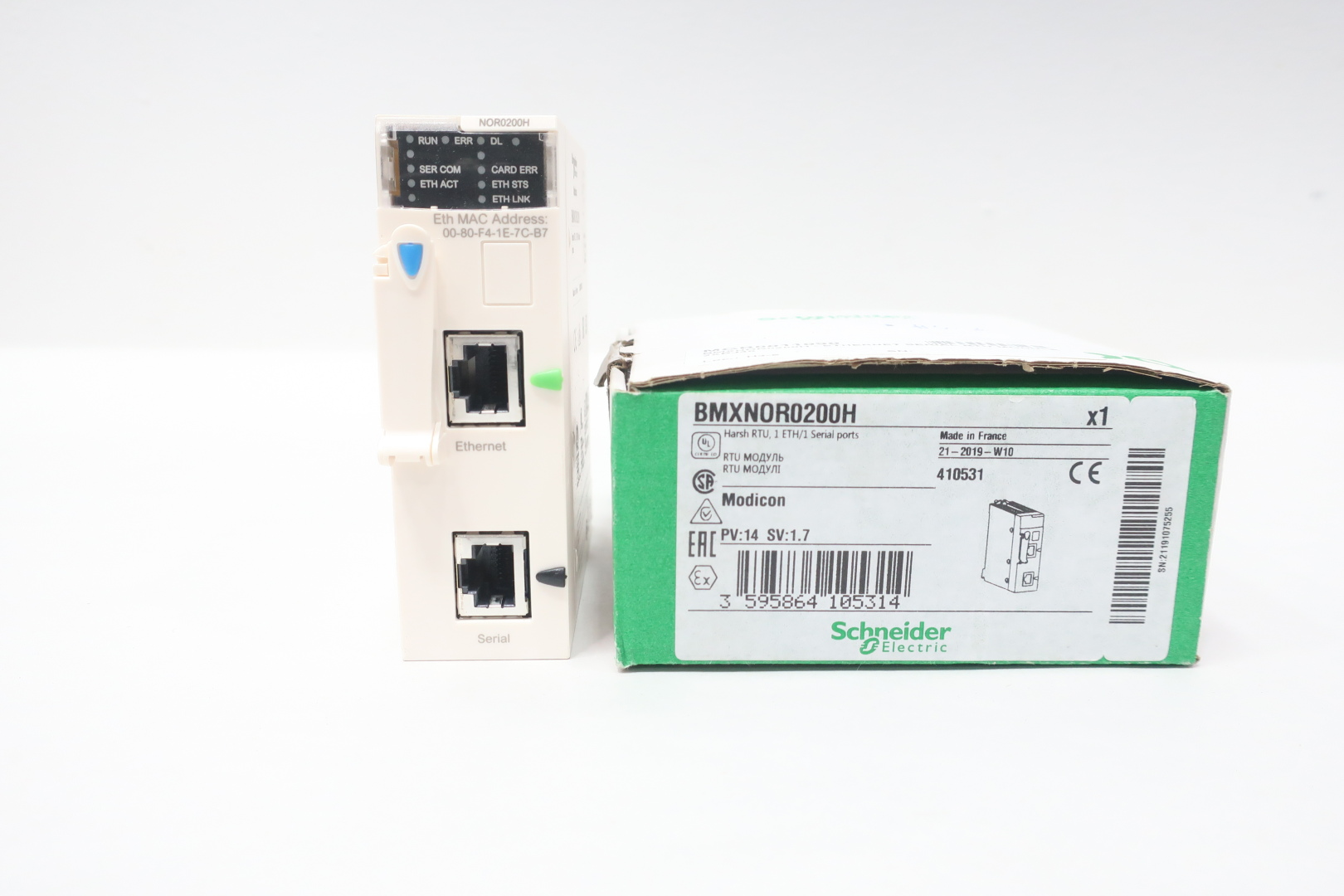

BMXNOR0200H

Environment

Ambient Air Temperature For Operation

-25-70 °C

Standards

EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || EN/IEC 60079-0

Product Certifications

CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22 || UKCA

Environmental Characteristic

gas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3 || hazardous location class I division 2

Directives

2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive

Relative Humidity

10-95 % without condensation

Ip Degree Of Protection

IP20

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Supply

internal power supply via rack

Current Consumption

95 mA 24 V DC

Net Weight

0.2 kg

Communication Service

bandwidth management || Modbus TCP messaging || DNP3/DNP3 IP protocol || IEC 60870-5 -101/-104 protocol || time stamped events management || external modem management (serial, PSTN, GSM, GPRS/3G) || data logging in CSV files || Email/SMS notifications || web server, rack viewer, data editor || BootP, DHCP, FDR client || SMTP server, FTP client/server, NTP client, SNMP agent, || automatic events backup on power loss || multi-protocols support in a single module (master and slave) || transparent events routing from remote slaves to SCADA

Local Signalling

for activity on Ethernet network (ETH ACT) 1 LED (green) || for processor running (RUN) 1 LED (green) || for status of Ethernet network (ETH STS) 1 LED (green) || for memory card fault (CARD ERR) 1 LED (red) || for processor or system fault (ERR) 1 LED (red) || for download in progress (DL) 1 LED (red) || for serial communication (SER COM) 1 LED (yellow) || for data rate (ETH LINK) 1 LED (green)

Module Format

standard

Port Ethernet

10BASE-T/100BASE-TX

Memory Description

supplied Flash SD memory card (BMXRWS128MWF) 128000 kB

Memory Usage

activating the standard web server || user web pages storage || data logging CSV files storage

Specifications

Range Of Product

Modicon M340

Product Or Component Type

communication module

Integrated Connection Type

Ethernet RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30 || serial RS232/485 RJ45 300/38400 bit/s 1 twisted pair transparent ready class C30

Protective Treatment

conformal coating
