Schneider Electric
BSH1001P12F1A
- Condizione:
- Nuove eccedenze
- Disponibile:
- 1 pz.DisponibileAggiornato il: 08-11-2024
- Offerta da:
Fornitore Automa.Net di fiducia- Consegna stimata:
- Su richiesta
- Garanzia:
- 12 mesi
1
Schneider Electric
BSH1001P12F1A
1 / 1
Descrizione
Attivo maturo

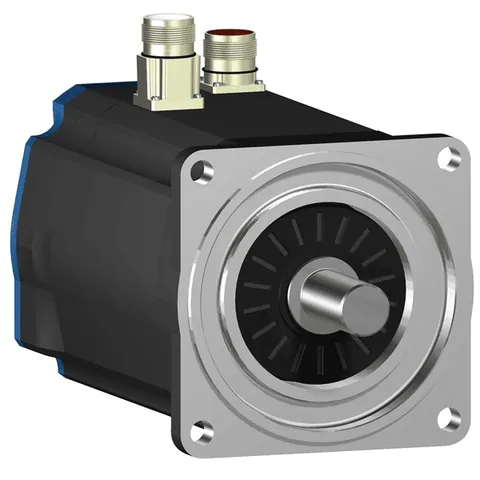

This product is part of the Lexium 32 & Motors range, an offer of servo motors from 0.4kW to 6kW. The 8-pole AC servo motor features a low moment of inertia with a maximum mechanical speed of 6000RPM and keyed shaft with holding brake. It is an equipped with a multi-turn (1,31,072 points/turn x 4096 turns) SinCos Hiperface® high resolution absolute encoder. It is a synchronous servo motor with a supply voltage of 480V, a continuous stall current of 3.5A and a maximum continuous power of 1.6W. The shaft dimensions are 19mm (diameter) x 40mm (length). It is furnished with straight connectors for electrical connection. It is an IP50 standard rated product. The length of this product is 199.5mm and the centering collar dimensions are 3.5mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 4.8kg. This range is compatible with Lexium 32, Lexium 15 and Lexium 05 servo drives. This product is compatible with LXM15LD21M3 at 230V single phase. It supports 100mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.- Country of Origin
- DE
- Part Number
- BSH1001P12F1A
- Tariff Code
- 85015220
- EAN
- 3389118138261
- UNSPSC
- 26101205
Metodi di pagamento:
- Migliore offerta da:
Fornitore Automa.Net di fiducia- Disponibilità:
- 10 pz.DisponibileAggiornato il: 08-11-2024
- Garanzia:
- 12 mesi
- Consegna stimata:
- Su richiesta
- Condizione:
- Nuovo sigillato in fabbrica
Nuovo sigillato in fabbrica - Un articolo nuovo di zecca, inutilizzato, non aperto, non danneggiato, nella sua confezione originale sigillata dal produttore.
Un totale di 11 Parts In-Stock da 2 Distributors
- Consegna da:
- SKDE
Processo di Pagamento Sicuro
Politiche di Reso e Rimborso
Politiche di Spedizione
Politiche di Garanzia
Offerte Disponibili (1)
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
€1,101.34
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP111049EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- N/A
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Circle Diameter Of The Mounting Holes
- 115 mm
- Maximum Permanent Current
- 12 A
- Continuous Power
- 1.6 W
- Switching Frequency
- 8 kHz
- Stator Electrical Time Constant
- 4.63 ms 20 °C
- Holding Torque
- 9 N.m holding brake
- Maximum Radial Force Fr
- 530 N 5000 rpm || 570 N 4000 rpm || 630 N 3000 rpm || 720 N 2000 rpm || 900 N 1000 rpm
- Number Of Motor Stacks
- 1
- Rotor Inertia
- 2.018 kg.cm²
- Number Of Motor Poles
- 8
- Back Emf Constant
- 60 V/krpm 120 °C
- Maximum Axial Force Fa
- 0.2 x Fr
- Centring Collar Depth
- 3.5 mm
- Second Shaft
- without second shaft end
- Shaft Length
- 40 mm
- Brake Pull-In Power
- 18 W
- Phase
- three phase
- Length
- 199.5 mm
- Maximum Current Irms
- 12 A LXM15LD21M3 || 12 A LXM32.D18N4 || 12 A LXM15LD10N4 || 12 A LXM15LD17N4 || 12 A LXM05AD17M3X || 12 A LXM05AD22N4 || 12 A LXM05BD17M3X || 12 A LXM05BD22N4 || 12 A LXM05CD17M3X || 12 A LXM05CD22N4
- Net Weight
- 4.8 kg
- Centring Collar Diameter
- 95 mm
- Stator Inductance
- 17.6 mH 20 °C
- Motor Flange Size
- 100 mm
- [Us] Rated Supply Voltage
- 480 V
- Number Of Mounting Holes
- 4
- Shaft Diameter
- 19 mm
- Key Width
- 30 mm
- Mounting Holes Diameter
- 9 mm
- Type Of Cooling
- natural convection
- Feedback Type
- multiturn SinCos Hiperface
- Stator Resistance
- 3.8 Ohm 20 °C
- Range Compatibility
- Lexium 05 || Lexium 32 || Lexium 15
- Continuous Stall Current
- 3.5 A
- Torque Constant
- 0.89 N.m/A 120 °C
Specifications
- Maximum Mechanical Speed
- 6000 rpm
- Mounting Support
- international standard flange
- Holding Brake
- with
- Speed Feedback Resolution
- 131072 points/turn x 4096 turns
- Product Or Component Type
- servo motor
- Nominal Output Power
- 1300 W LXM15LD17N4, 400 V, three phase || 900 W LXM05AD22N4, 380...480 V, three phase || 900 W LXM05BD22N4, 380...480 V, three phase || 900 W LXM05CD22N4, 380...480 V, three phase || 950 W LXM15LD17N4, 230 V, three phase || 950 W LXM15LD21M3, 230 V, three phase || 1100 W LXM32.D18N4 6 A, 400 V, three phase || 1100 W LXM32.D18N4 6 A, 480 V, three phase || 1500 W LXM15LD10N4, 480 V, three phase || 950 W LXM15LD21M3, 230 V, single phase || 1300 W LXM15LD10N4, 400 V, three phase || 1500 W LXM15LD17N4, 480 V, three phase || 500 W LXM05AD17M3X, 200...240 V, three phase || 500 W LXM05BD17M3X, 200...240 V, three phase || 500 W LXM05CD17M3X, 200...240 V, three phase || 850 W LXM15LD10N4, 230 V, three phase
- Peak Stall Torque
- 7.08 N.m LXM15LD21M3, 230 V, single phase || 7.1 N.m LXM05AD22N4, 380...480 V, three phase || 7.1 N.m LXM05BD17M3X, 200...240 V, three phase || 7.1 N.m LXM05BD22N4, 380...480 V, three phase || 7.1 N.m LXM05CD17M3X, 200...240 V, three phase || 7.1 N.m LXM05CD22N4, 380...480 V, three phase || 9.6 N.m LXM32.D18N4 6 A, 400 V, three phase || 9.6 N.m LXM32.D18N4 6 A, 480 V, three phase || 6.19 N.m LXM15LD10N4, 230 V, three phase || 6.19 N.m LXM15LD10N4, 400 V, three phase || 6.19 N.m LXM15LD10N4, 480 V, three phase || 7.08 N.m LXM15LD21M3, 230 V, three phase || 7.08 N.m LXM15LD17N4, 230 V, three phase || 7.08 N.m LXM15LD17N4, 400 V, three phase || 7.08 N.m LXM15LD17N4, 480 V, three phase || 7.1 N.m LXM05AD17M3X, 200...240 V, three phase
- Product Compatibility
- LXM15LD21M3 230 V single phase || LXM05AD22N4 380...480 V three phase || LXM05BD22N4 380...480 V three phase || LXM05CD22N4 380...480 V three phase || LXM15LD17N4 400 V three phase || LXM15LD17N4 480 V three phase || LXM32.D18N4 400 V three phase || LXM32.D18N4 480 V three phase || LXM15LD10N4 400 V three phase || LXM05AD17M3X 200...240 V three phase || LXM05BD17M3X 200...240 V three phase || LXM05CD17M3X 200...240 V three phase || LXM15LD10N4 230 V three phase || LXM15LD10N4 480 V three phase || LXM15LD21M3 230 V three phase || LXM15LD17N4 230 V three phase
- Ip Degree Of Protection
- IP50 standard
- Shaft End
- keyed
- Nominal Speed
- 3000 rpm LXM15LD10N4, 230 V, three phase || 1500 rpm LXM05CD17M3X, 200...240 V, three phase || 4500 rpm LXM15LD10N4, 400 V, three phase || 4500 rpm LXM15LD17N4, 400 V, three phase || 6000 rpm LXM15LD10N4, 480 V, three phase || 6000 rpm LXM15LD17N4, 480 V, three phase || 4000 rpm LXM32.D18N4 6 A, 400 V, three phase || 4000 rpm LXM32.D18N4 6 A, 480 V, three phase || 3000 rpm LXM15LD21M3, 230 V, single phase || 3000 rpm LXM05AD22N4, 380...480 V, three phase || 3000 rpm LXM05BD22N4, 380...480 V, three phase || 3000 rpm LXM05CD22N4, 380...480 V, three phase || 3000 rpm LXM15LD17N4, 230 V, three phase || 3000 rpm LXM15LD21M3, 230 V, three phase || 1500 rpm LXM05AD17M3X, 200...240 V, three phase || 1500 rpm LXM05BD17M3X, 200...240 V, three phase
- Electrical Connection
- straight connectors
- Nominal Torque
- 3 N.m LXM15LD21M3, 230 V, single phase || 3 N.m LXM15LD17N4, 230 V, three phase || 3 N.m LXM15LD21M3, 230 V, three phase || 3.16 N.m LXM05AD17M3X, 200...240 V, three phase || 3.16 N.m LXM05BD17M3X, 200...240 V, three phase || 3.16 N.m LXM05CD17M3X, 200...240 V, three phase || 2.7 N.m LXM32.D18N4 6 A, 400 V, three phase || 2.7 N.m LXM32.D18N4 6 A, 480 V, three phase || 2.5 N.m LXM15LD10N4, 480 V, three phase || 2.5 N.m LXM15LD17N4, 480 V, three phase || 2.7 N.m LXM15LD10N4, 230 V, three phase || 2.7 N.m LXM15LD10N4, 400 V, three phase || 2.7 N.m LXM15LD17N4, 400 V, three phase || 2.92 N.m LXM05AD22N4, 380...480 V, three phase || 2.92 N.m LXM05BD22N4, 380...480 V, three phase || 2.92 N.m LXM05CD22N4, 380...480 V, three phase
- Device Short Name
- BSH
- Continuous Stall Torque
- 3.39 N.m LXM15LD21M3, 230 V, single phase || 3.4 N.m LXM05AD22N4, 380...480 V, three phase || 3.4 N.m LXM05BD17M3X, 200...240 V, three phase || 3.4 N.m LXM05BD22N4, 380...480 V, three phase || 3.4 N.m LXM05CD17M3X, 200...240 V, three phase || 3.4 N.m LXM05CD22N4, 380...480 V, three phase || 3.3 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.3 N.m LXM32.D18N4 6 A, 480 V, three phase || 2.7 N.m LXM15LD10N4, 230 V, three phase || 3.39 N.m LXM15LD10N4, 400 V, three phase || 3.39 N.m LXM15LD10N4, 480 V, three phase || 3.39 N.m LXM15LD21M3, 230 V, three phase || 3.39 N.m LXM15LD17N4, 230 V, three phase || 3.39 N.m LXM15LD17N4, 400 V, three phase || 3.39 N.m LXM15LD17N4, 480 V, three phase || 3.4 N.m LXM05AD17M3X, 200...240 V, three phase
Contractual warranty
- Warranty
- 18 months
